Vertical wall flashing board - factory price roofing accessories

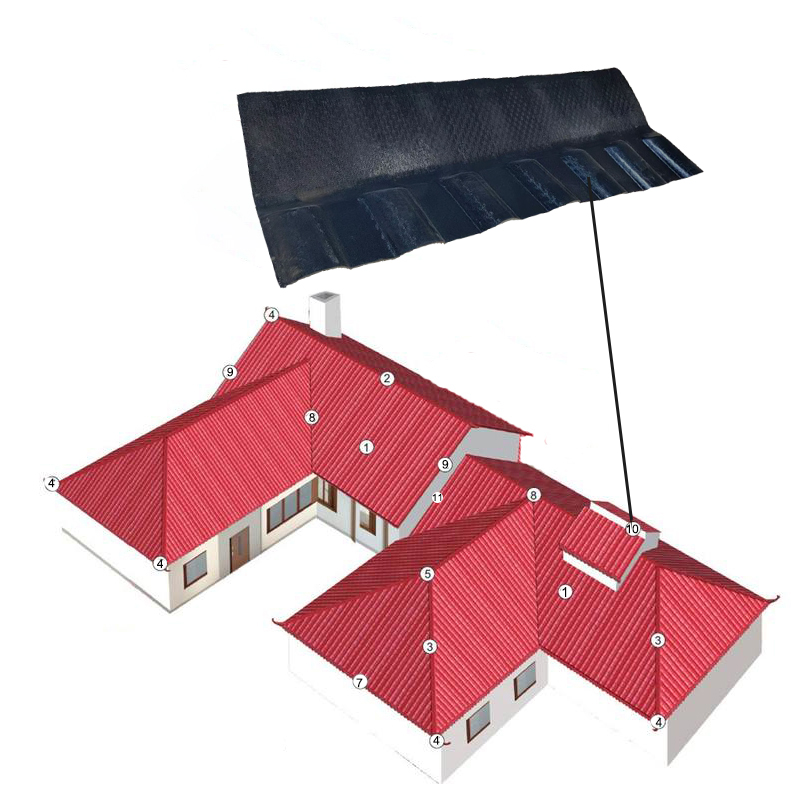

The vertical wall flashing board is a waterproof accessory used at the intersection of the vertical wall and the roof of the building.

Function

Prevent rainwater from penetrating into the building from the intersection of the wall and the roof, protect the structure and waterproof layer of the wall and roof, and ensure the waterproof performance of the building

product details

Specification

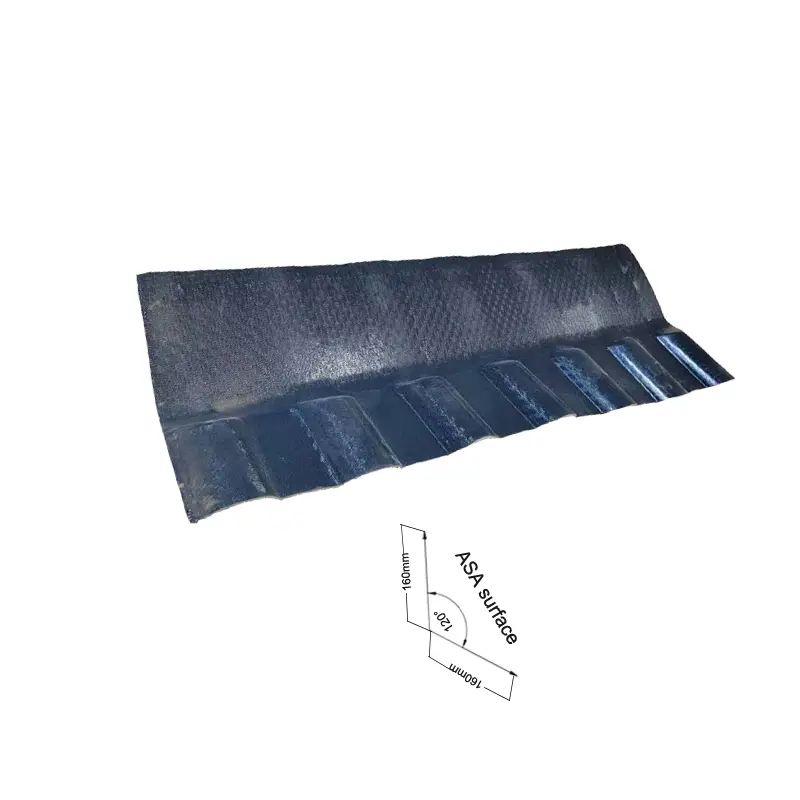

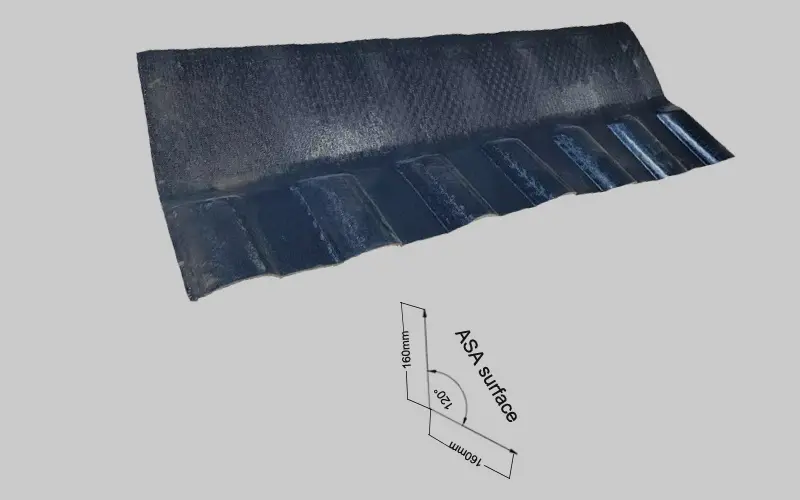

Name	Vertical wall flashing board
Material	1 . Sodium silicate+Nano Modified Calcium+PMMA ; 2. PVC asa /Synthetic resin
Application	Must use together with the main tile,for COVER THE ROOFING TOP
Service life	20 years - 50 years
Dimention	Length: 1050MM ;Angle :120 °
Thickness	3.0MM
Weight	6.2kg/pc
Color	Usual color-Grey, Red,Blue,Orange,Accept custom
Advantage	Super Corrosion resistance;long lasting color;Easy install,Etc

ABOUT INSTALLATION

- Position determination: Install at the intersection of the vertical wall and the roof, and determine the specific position according to the roof slope, wall height and architectural design requirements.

- Base treatment: Before installation, ensure that the wall and roof base are flat, dry, clean, without cracks, looseness and other defects, and repair and waterproof treatment if necessary.

- Fixing method: Use nails, screws or glue to fix the flashing board to the wall and roof. The fixing spacing is determined according to the material and length of the flashing board, generally 300-600mm.
