Composite Material Series
01

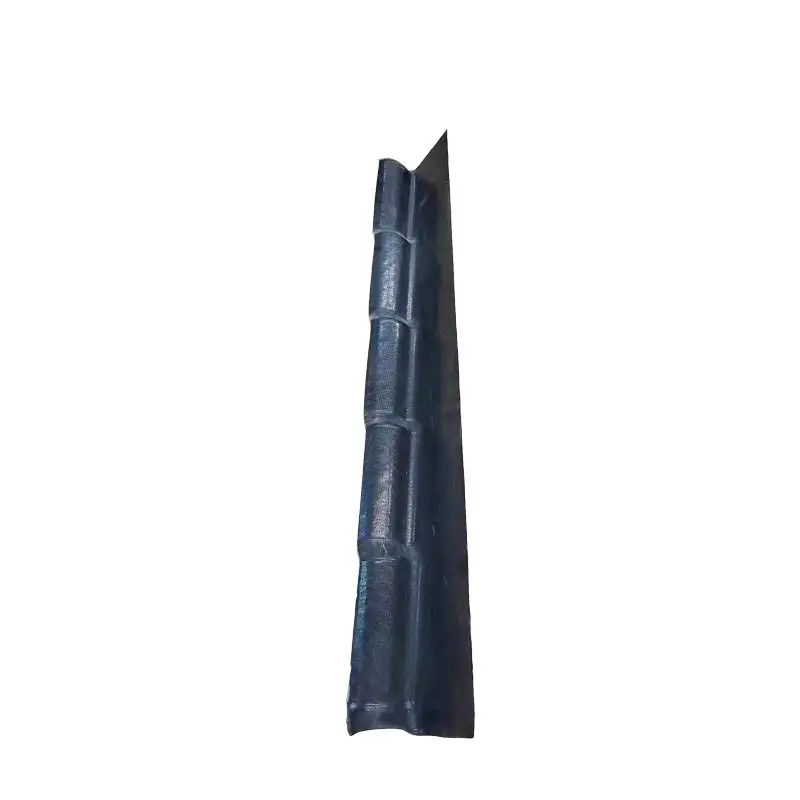

Gable flashing board - PVC ASA plastic building material roofing accessories
Specification
|
Name |
Gable flashing board |
|
Material |
1 . Sodium silicate+Nano Modified Calcium+PMMA ; 2. PVC asa /Synthetic resin |
|
Application |
Must use together with the main tile,for COVER THE ROOFING TOP |
|
Service life |
20 years - 50 years |
|
Dimention |

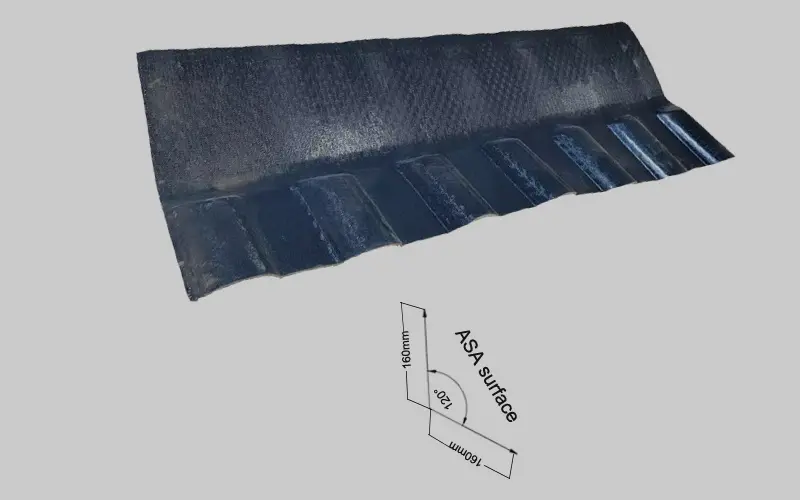

Length: 1050MM ;Angle :120 ° |
|
Thickness |
3.0MM |
|
Weight |
6.2kg/pc |
|
Color |
Usual color-Grey, Red,Blue,Orange,Accept custom |
|
Advantage |
Super Corrosion resistance;long lasting color;Easy install,Etc |
ABOUT INSTALLATION

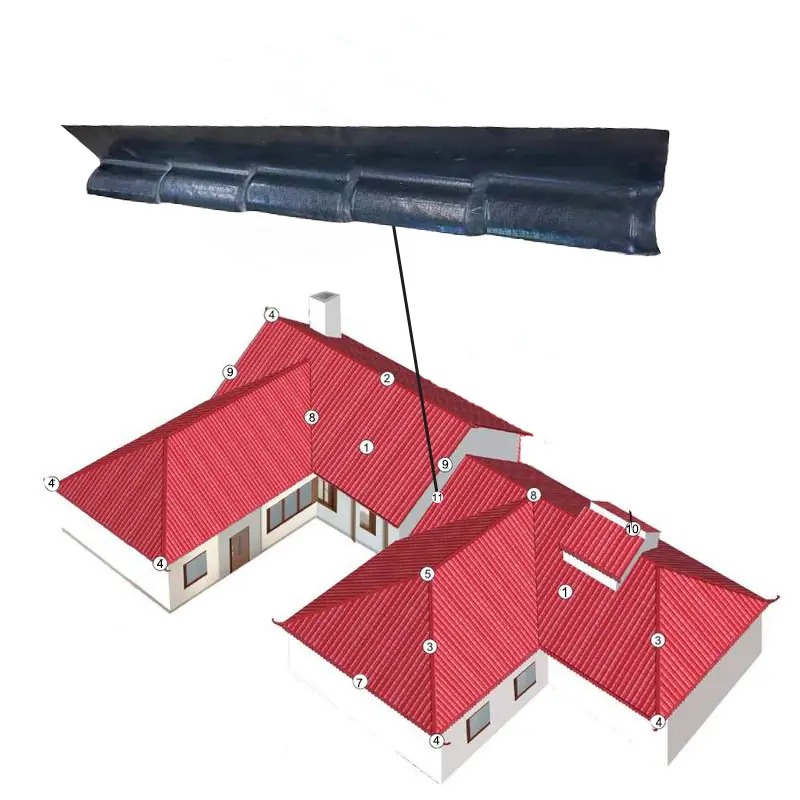

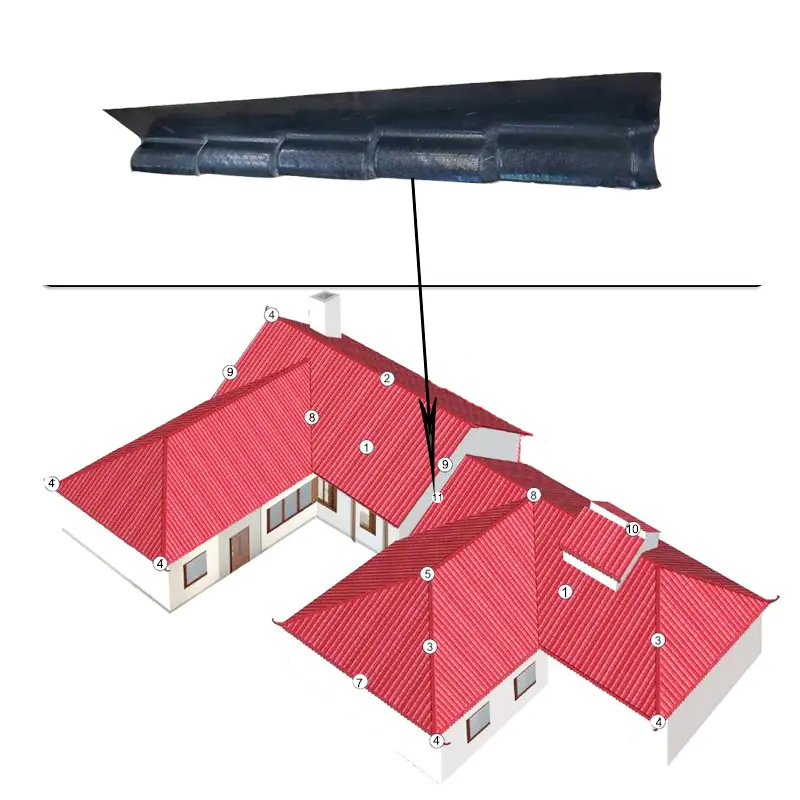

Position determination: Installed at the junction of the gable and the roof, the specific position needs to be determined according to the roof slope, gable height and architectural design requirements.
- Base treatment: Before installation, ensure that the base of the gable and roof is flat, dry, clean, and free of cracks, looseness, and other defects. If necessary, repair and waterproof treatment are required.
- Fixing method: Generally, nails, screws, rivets or glue are used to fix the flashing board on the gable and roof. The fixing spacing is determined according to the material and length of the flashing board, usually 300-600mm
