Synthetic Resin Series

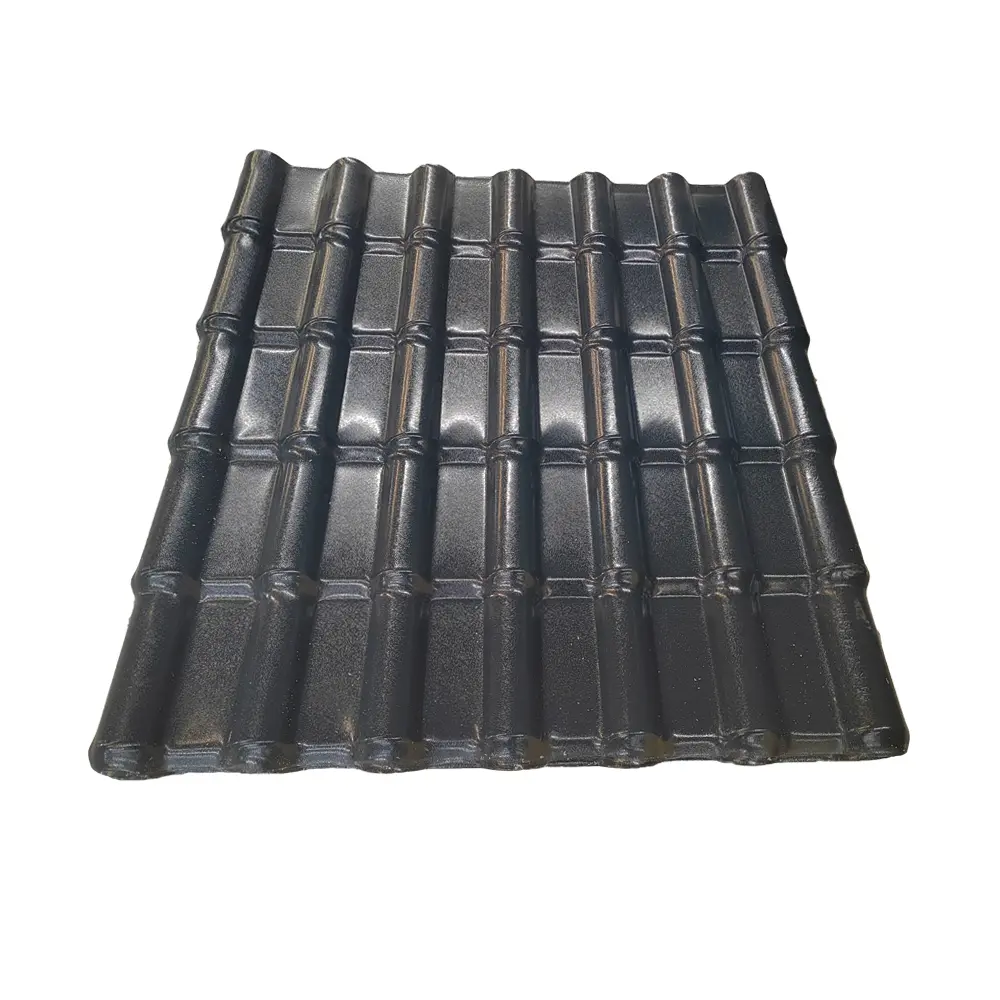

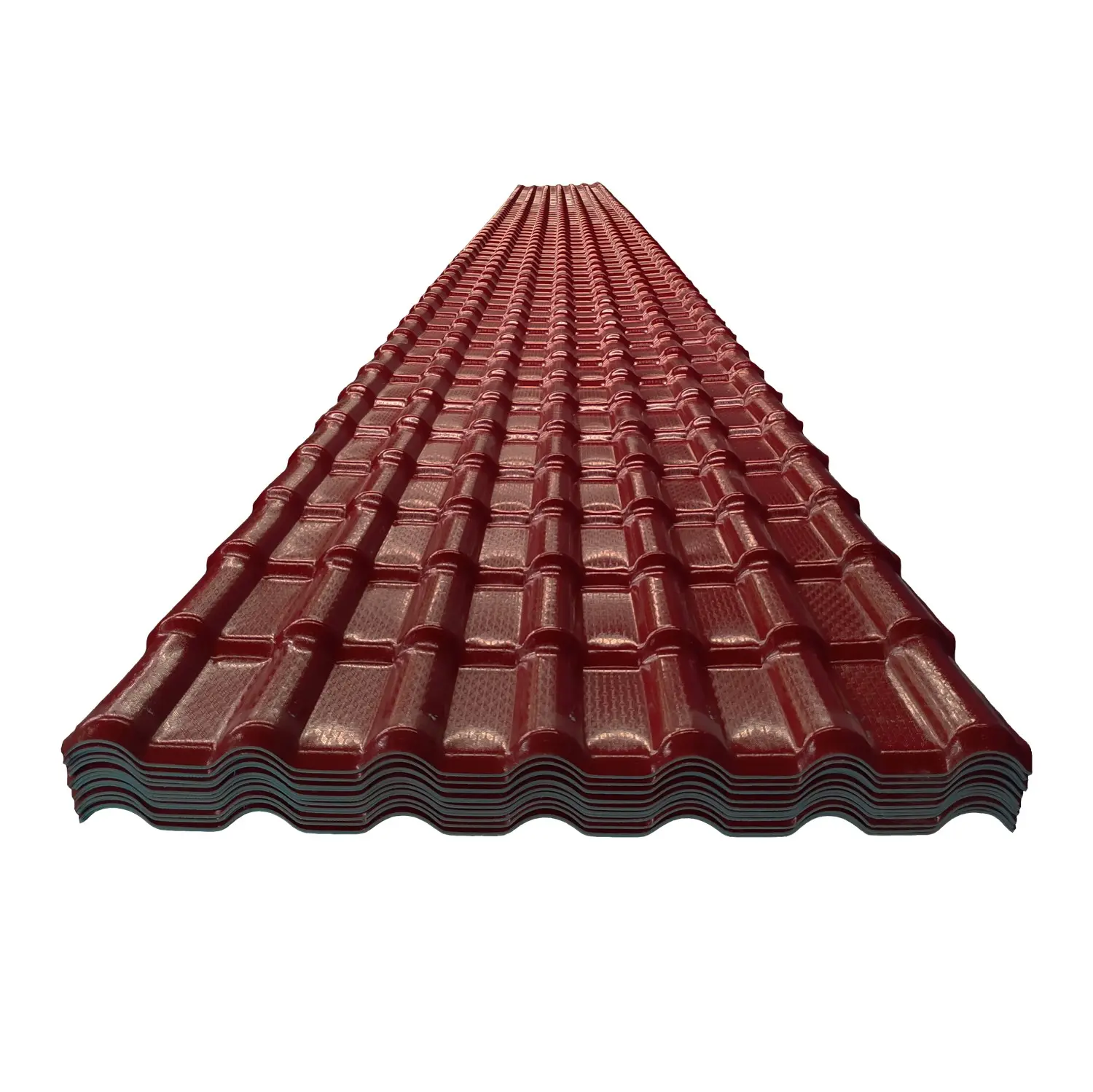

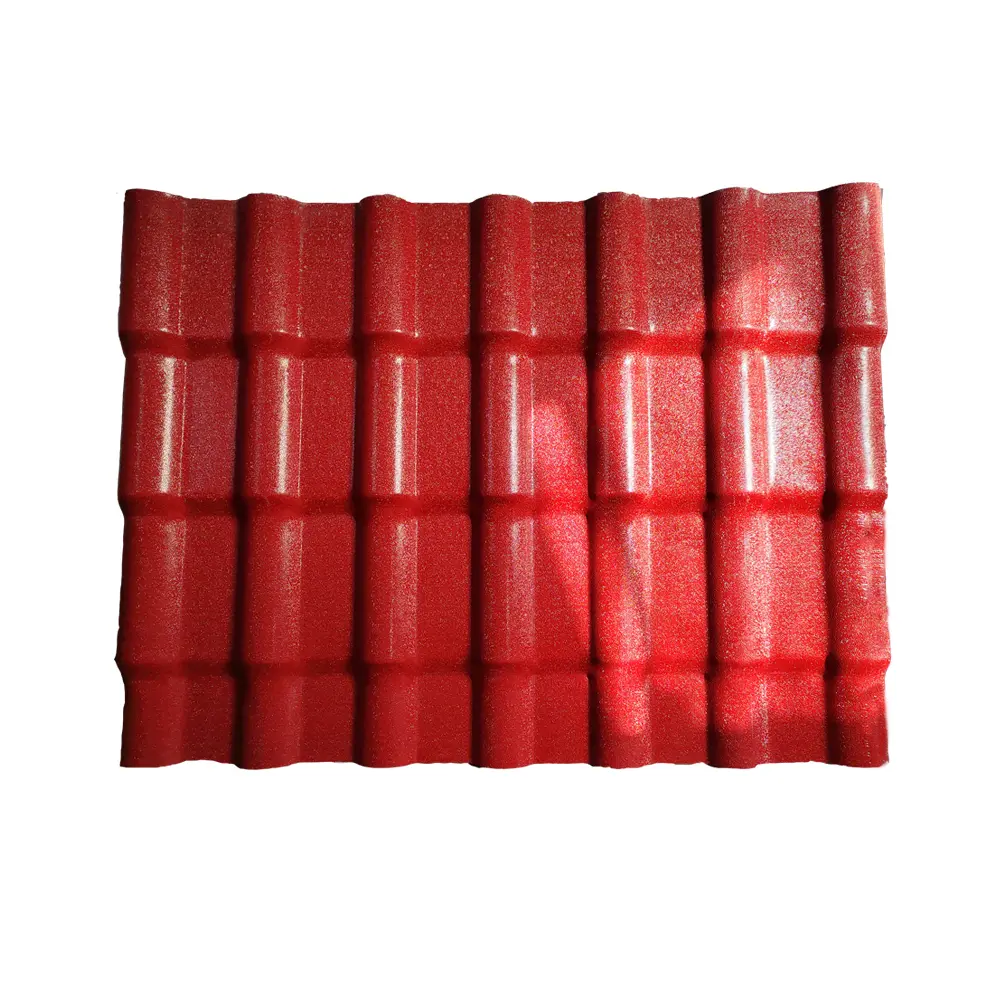

Corrugated classical style ASA coated synthetic resin factory price tile roofing made in China
Specification
|
Name |
Synthetic resin tile |
|
Material |
ASA Resin+pvc resin |
|
Size |
Width : 1050mm; Effective width : 960mm;Wave height 30mm;Pitch :220mm |
|
Thickness |
2.0mm/2.3mm/2.5mm/3.0mm |
|
Length |
According to customers’ request |
|
Color |

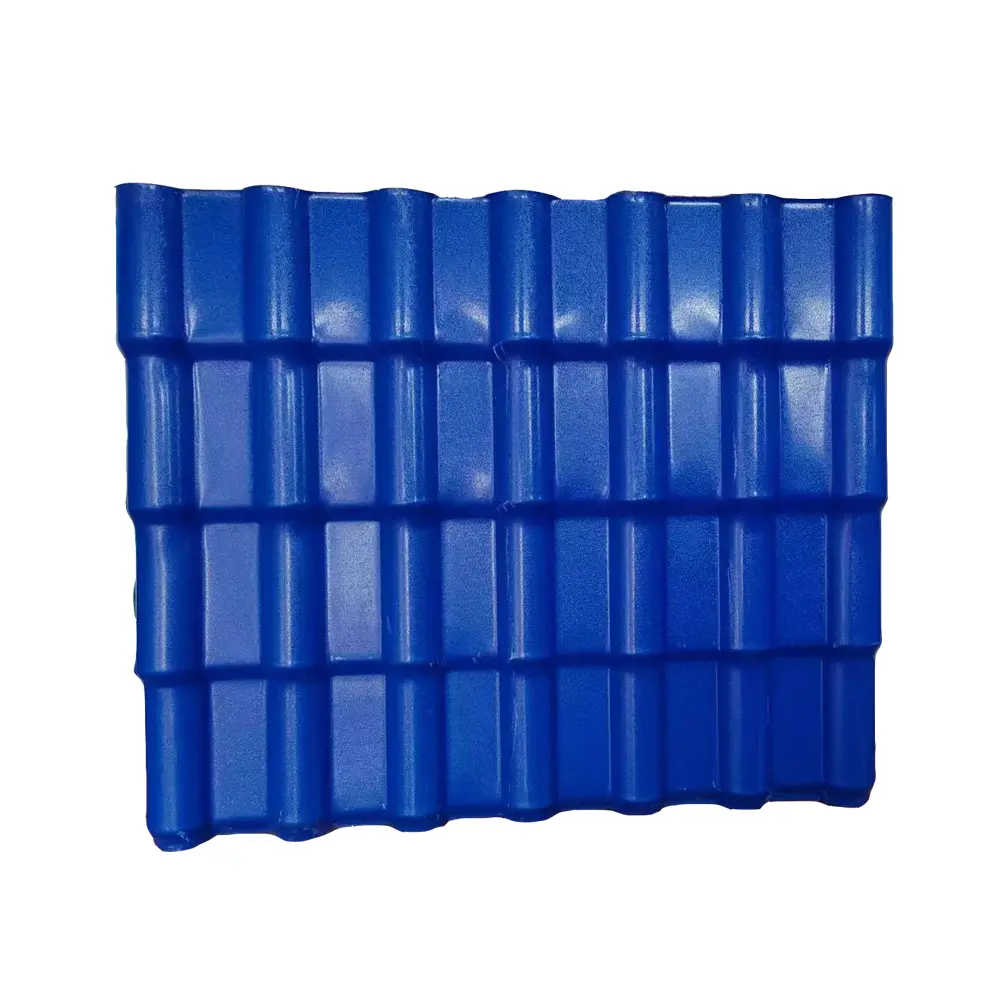

Grey\Red\Blue\Orange,accept custom |
|
Service |
Total solution for project \ online technical support |
|
Application |
20°- 80°slope roofing |
|
Life span |
20-30years |
|
MOQ |
Negotiate |
|
Shipping port |
Tianjin |
Product Description

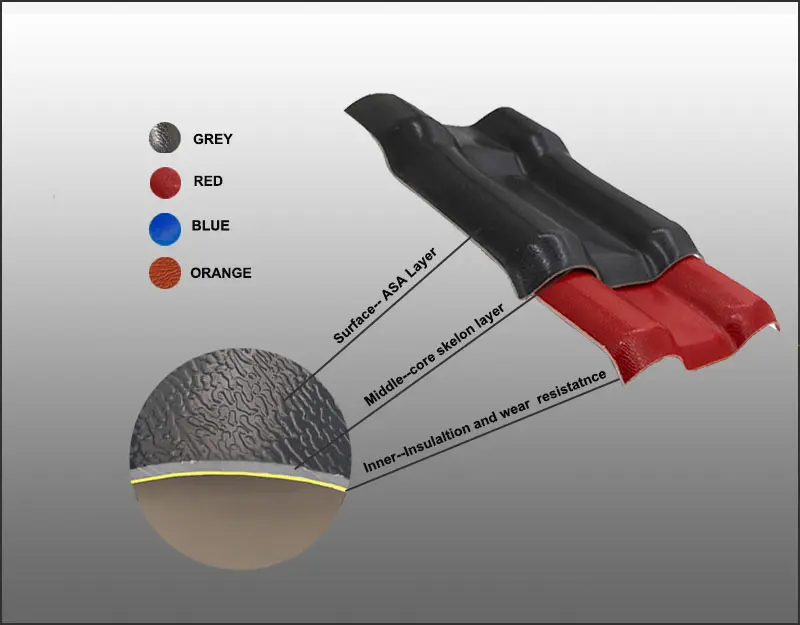

Synthetic resin tiles are usually made of PVC resin as the main raw material.
- Upper layer: It is a super weather-resistant ASA engineering resin with weather resistance, corrosion resistance, anti-aging and other properties. It has strong coloring rate and low fading rate.
- Middle layer: a polymeric material usually made of polyvinyl chloride resin and other materials. In order to increase the product's toughness, impact resistance, load-bearing capacity, high and low temperature tolerance and other properties, it is the core that affects the service life.
- Lower layer: It is a heat-insulating and wear-resistant layer, the main material is polyurethane, etc. Its main function is to increase the durability and wear resistance of resin tiles, effectively prevent wear and tear during installation and use, and keep the tile surface smooth and beautiful.
The structural diagram of resin tiles may vary from different manufacturers and products, but usually includes the above three basic layers.

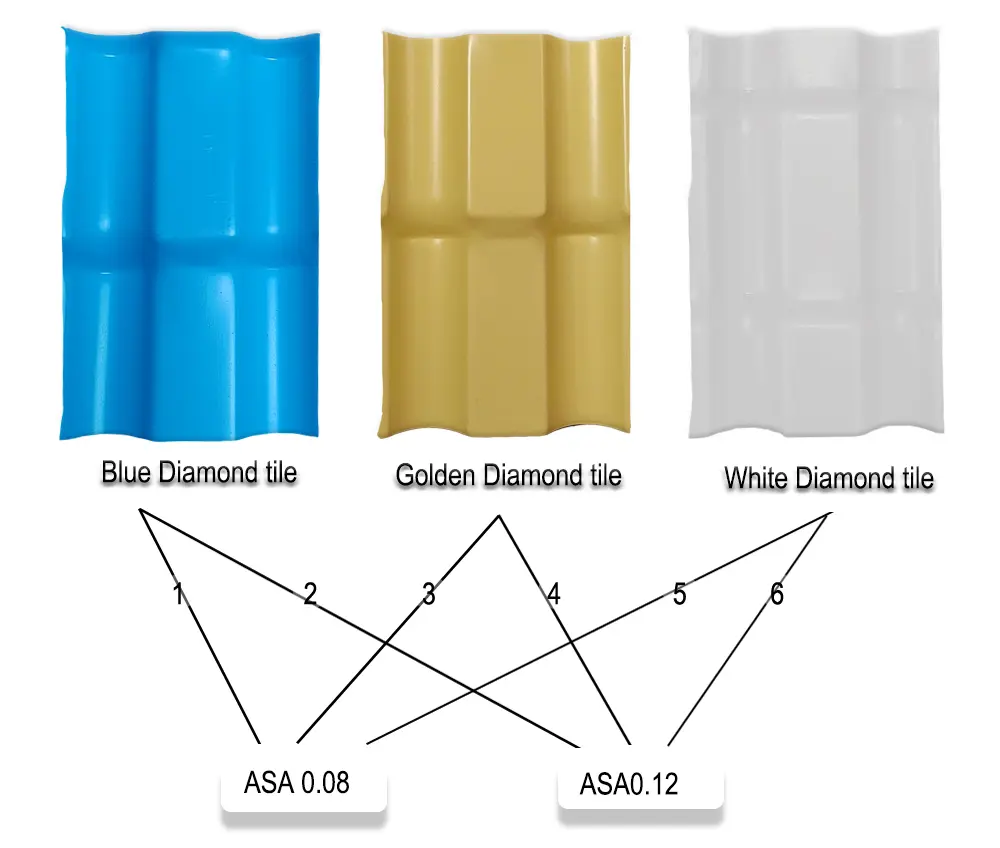

Classification
Characteristics
Accessories

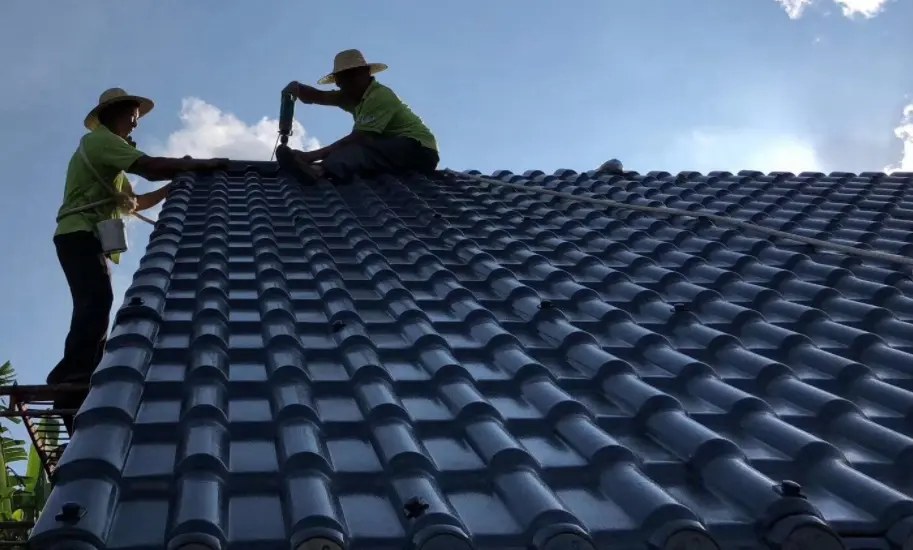

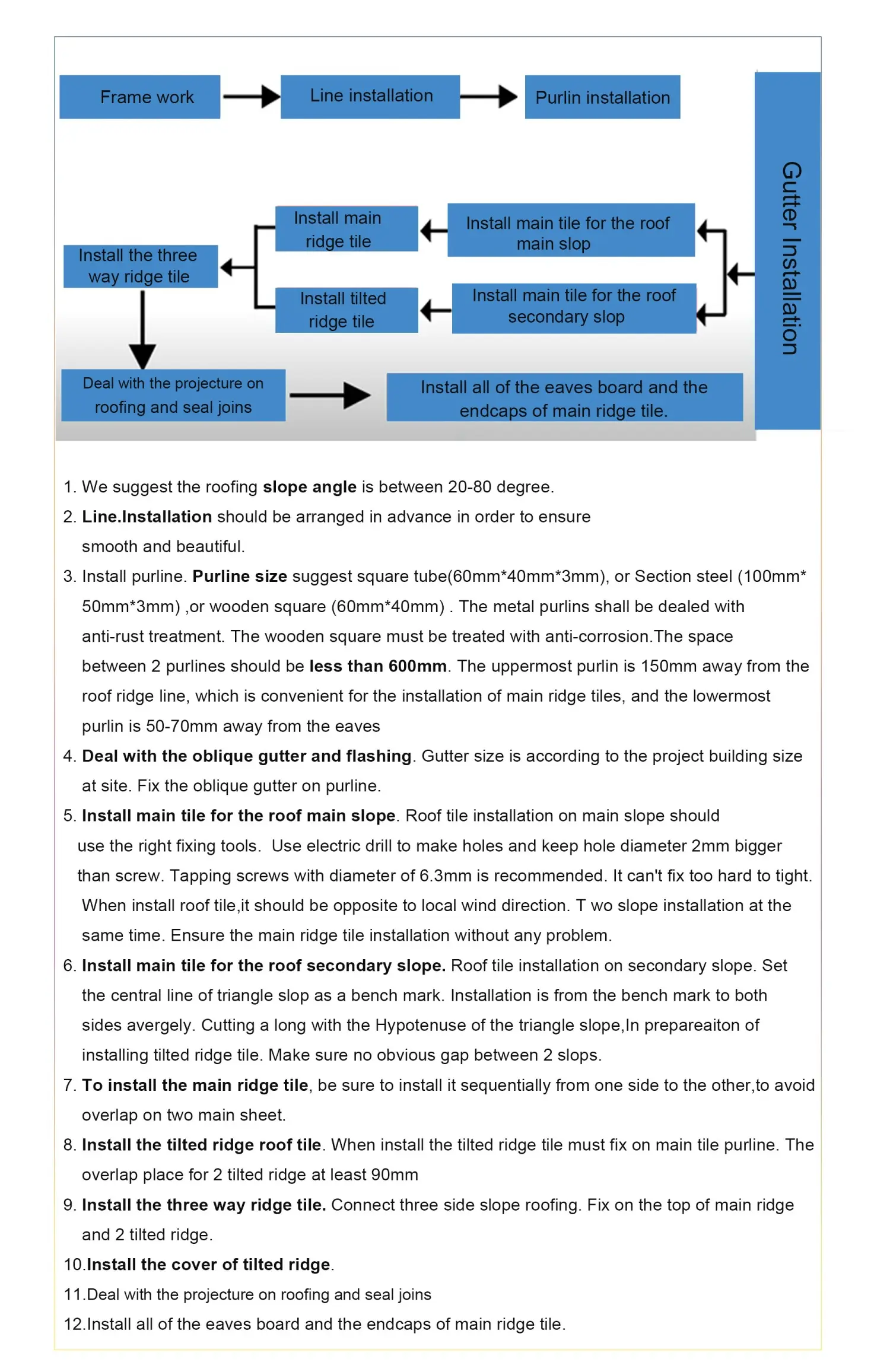

Installation

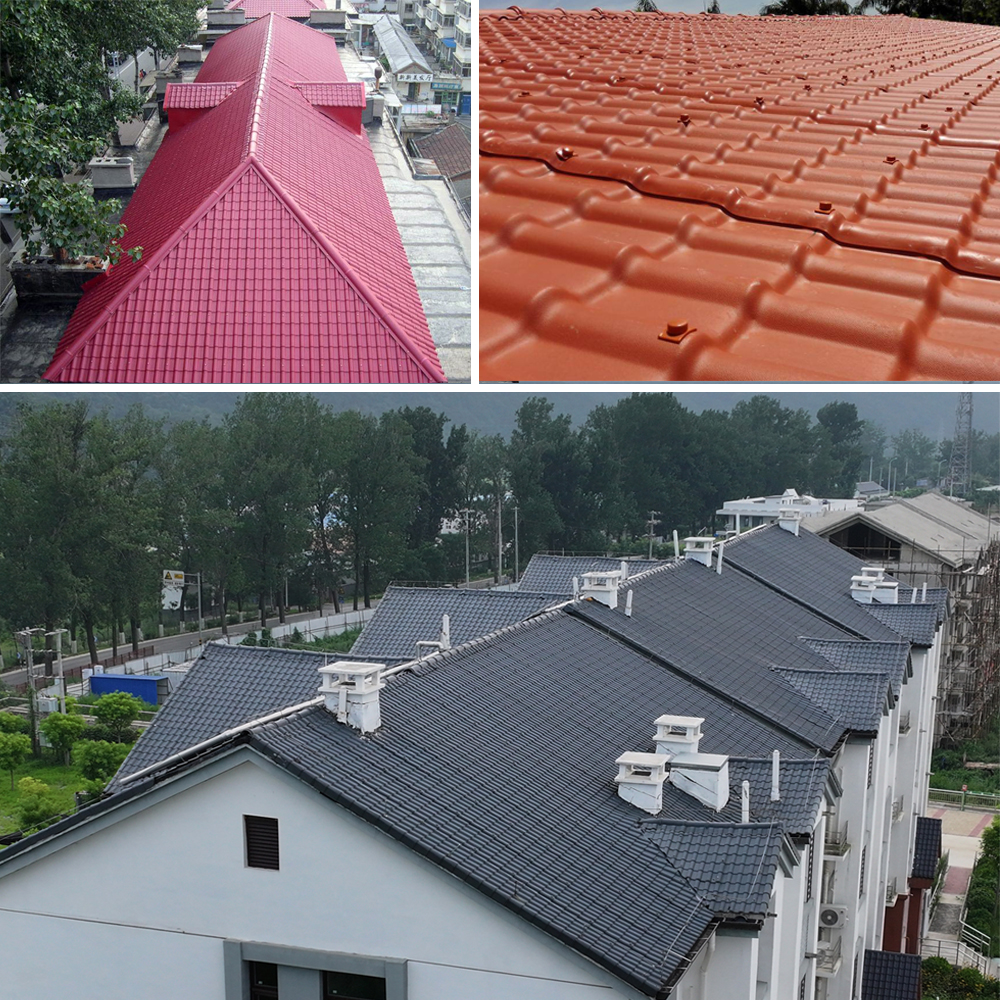

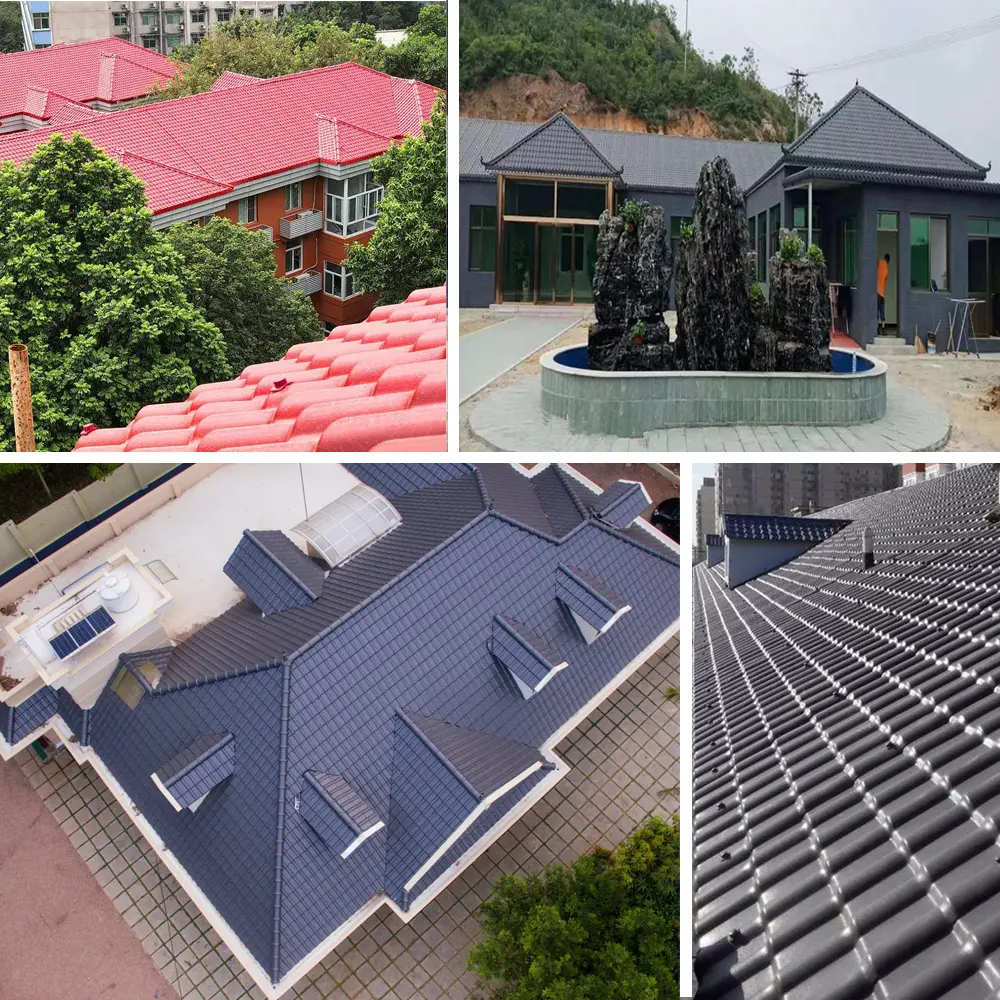

Project Case
Packing and shipping
Why choose us
