New Composite Material Calcium Silicon Roofing Sheet, 40+ Years warranty tile roof with Super weather resistance

Specification

Product Description

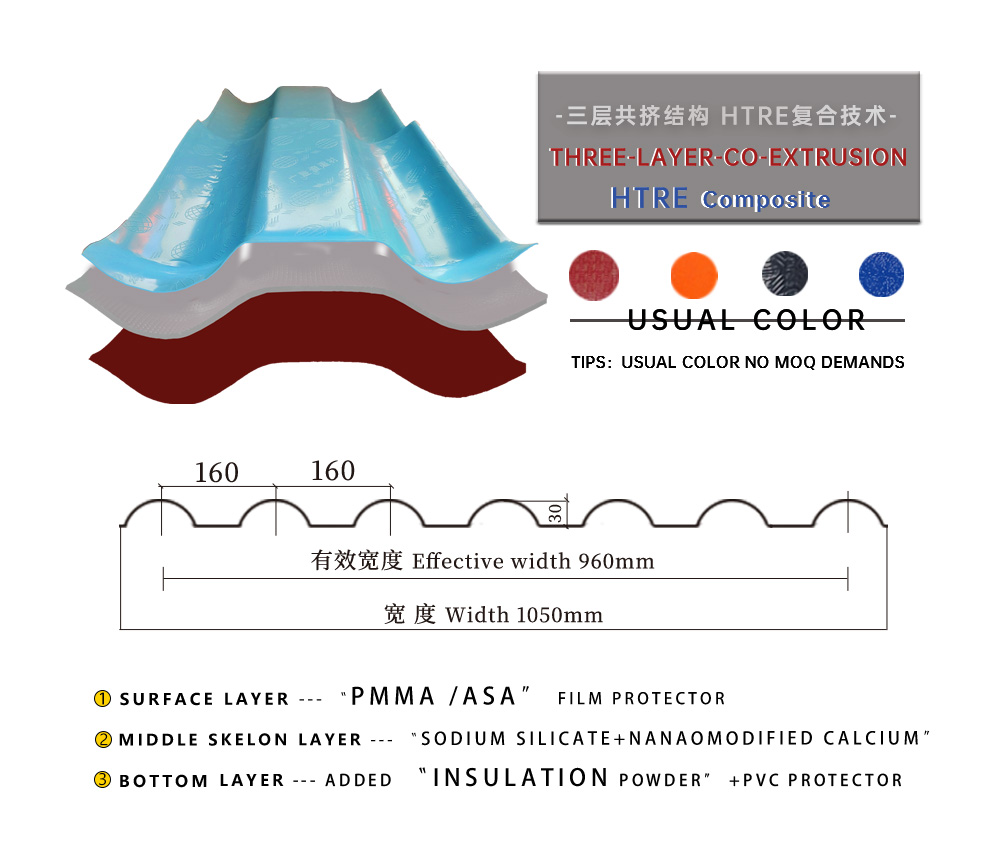

CALCIUM SILICON ANCIENT BUILDING TILE use the three-layer co-extrusion structure and HERE technology .Major raw material include SODIUM SILICATE,NANO MODIFIED CALCIUM,PMMA/ASA

The surface layer ASA/PMMA film has excellent features,such as good weather resistance 、 strongly physical and mechanical properties. It is covered on the surface of the tile to resist various invasions such as ultraviolet rays, wind and acid, alkali and salt substances in the natural environment, and enhance the structural stability the tile under the environment of frequent alternation of high and low temperatures from -40° to 80°. And the fading rate is very low.

The middle core skeleton  layer is made of sodium silicate and nano-modified calcium. Sodium silicate has good adhesion, which makes the tiles has good tensile strength and toughnes.Nano-modified calcium has better plasticizing effect ,and less impurities, which effectively improves the rigidity, toughness, finish and bending strength of the tiles,and improves tiles processing performance and dimensional stability.

The bottom layer of the tile body is specially added with thermal insulation materials to effectively prevent heat transfer from the tile body, reduce indoor and outdoor temperature exchange, improve the thermal insulation performance of the house,reduce the energy consumption of the air conditioning and heating systems.

Advantage

Low Expansion and Contraction

The thermal expansion and contraction rate of calcium silicate ancient building tiles is much lower than that of synthetic resin tiles,Very close to the expansion and contraction rate of steel.Between -40°Celsius and 80°Celsius, the structure is relatively stable,not easily deformed.

Weather Resistance

The surface is coated with PMMA,which has super weather-resistant.  It provides good protection against UV rays and various erosion in nature when exposed to nature for an extended period of time.Long-lasting color,5% of rate fade in 15 years

Impact Resistance

The tile uses high-strength materials and HERE composite technology, which makes the product has super impact resistance and load resistance, 3 times that of similar products.Not afraid of heavy rain, hail and constructor trampling.

Fire Resistance

Calcium Silicon ancient building tiles are made of B1 grade fireproof raw materials,it makes the tiles have good fireproof performance and ensure that they extinguish instantly when they are removed from the source of fire.

Corrison Resistance

Silicon calcium ancient building tiles have excellent stability.Proven by corrosion test ,it can resist corrosion from various chemicals such as acid,alkali, and salt. So definitely it can resistant to acid rain, corrosive gases, and the high salinity coastal environment.

Soundproof

Because calcium silicon ancient construction tiles have a relatively high density, sound can be somewhat prevented from spreading. Additionally, it has good sound insulation due to the unique curved surface structure and material qualities.

Maintenance Simply And Fast

Silicon calcium ancient building tiles do not require maintenance under normal use conditions, because they are durable, not easy to deform, not easy to fade, and very clean after raining. They will not grow green moss and grass like clay and cement tiles. Even if they are harmed in bad weather, repairs and replacements would be quickly and simply.

Energy Conservation

The thermal conductivity of the tile body is less than 0.325 w/h,which makes it very easy to decrease temperature transmission between indoor and outdoor spaces, store heat, insulate, preserve energy, and lower carbon emissions

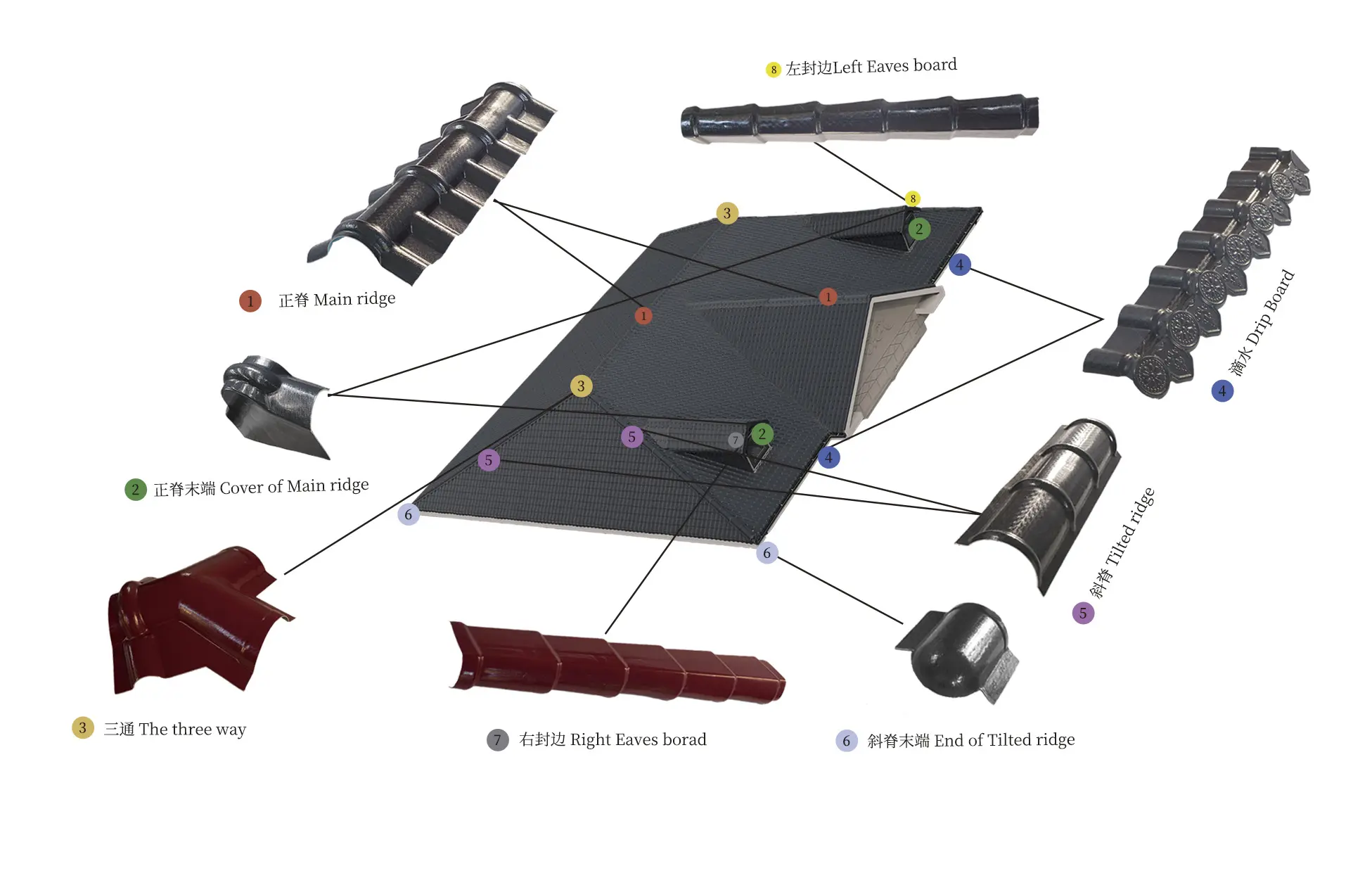

Accessories

Fixed Kits

Certificate And Test Report

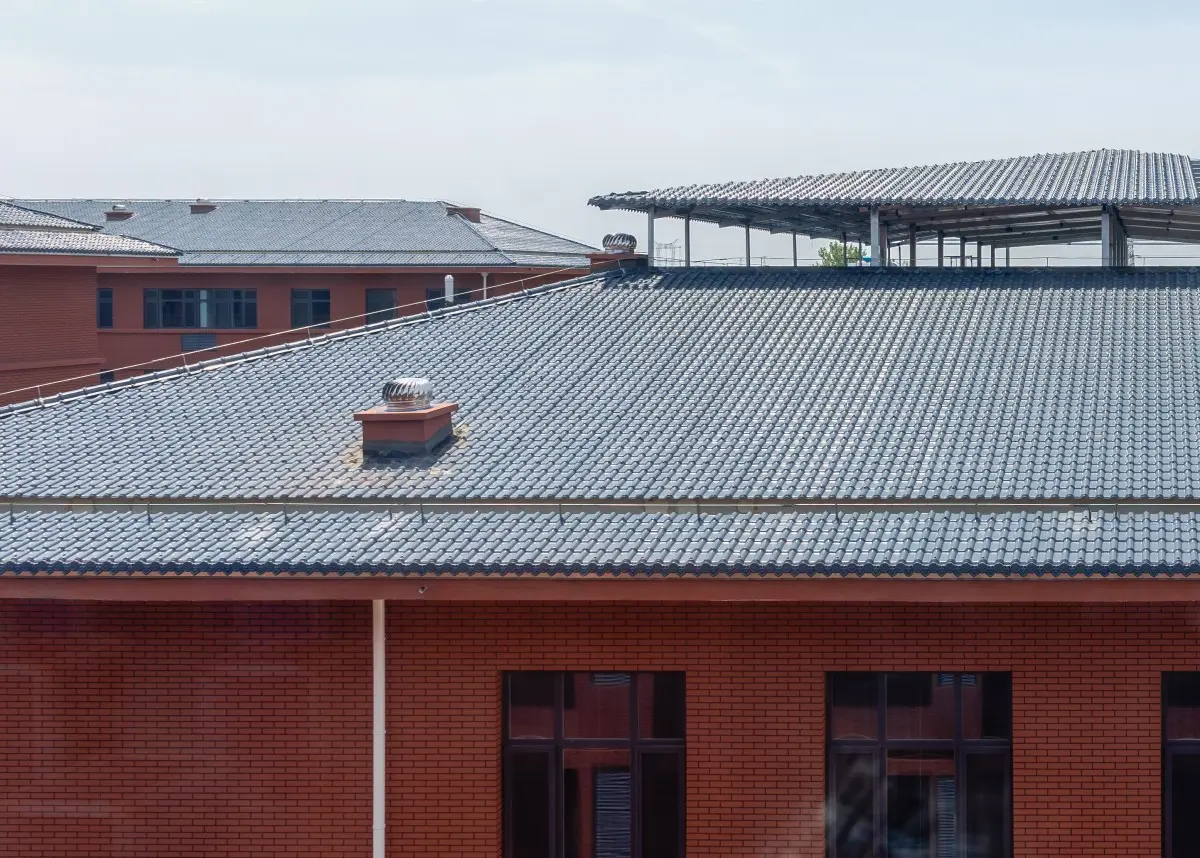

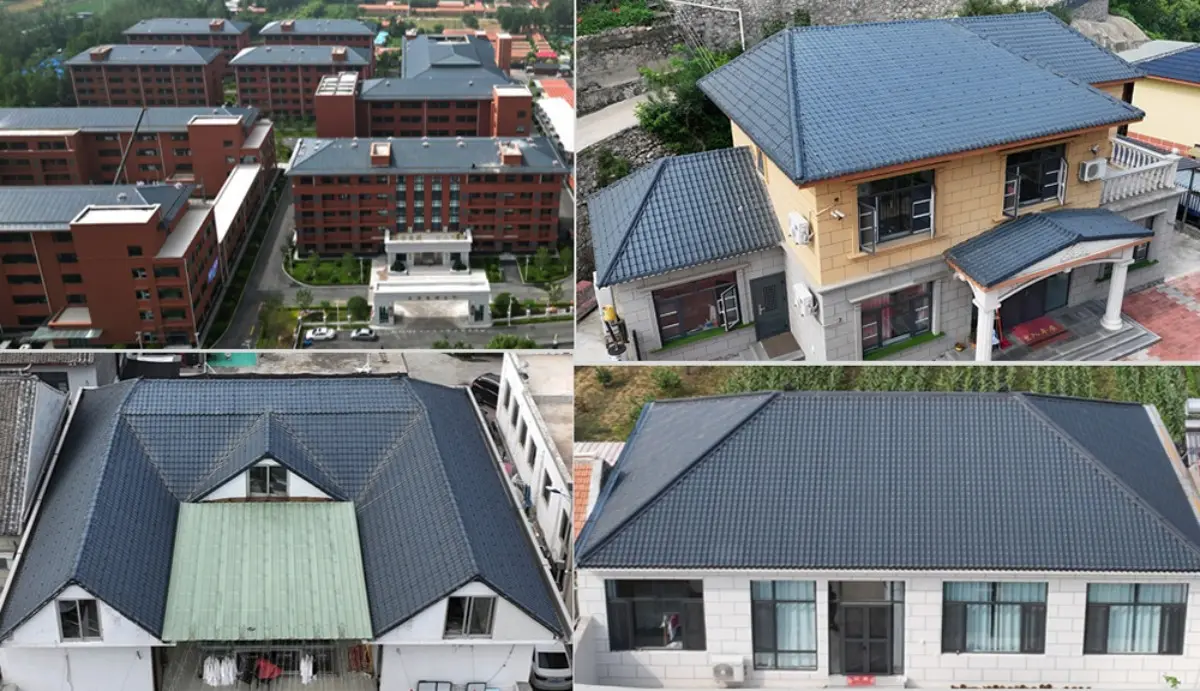

Project Case
