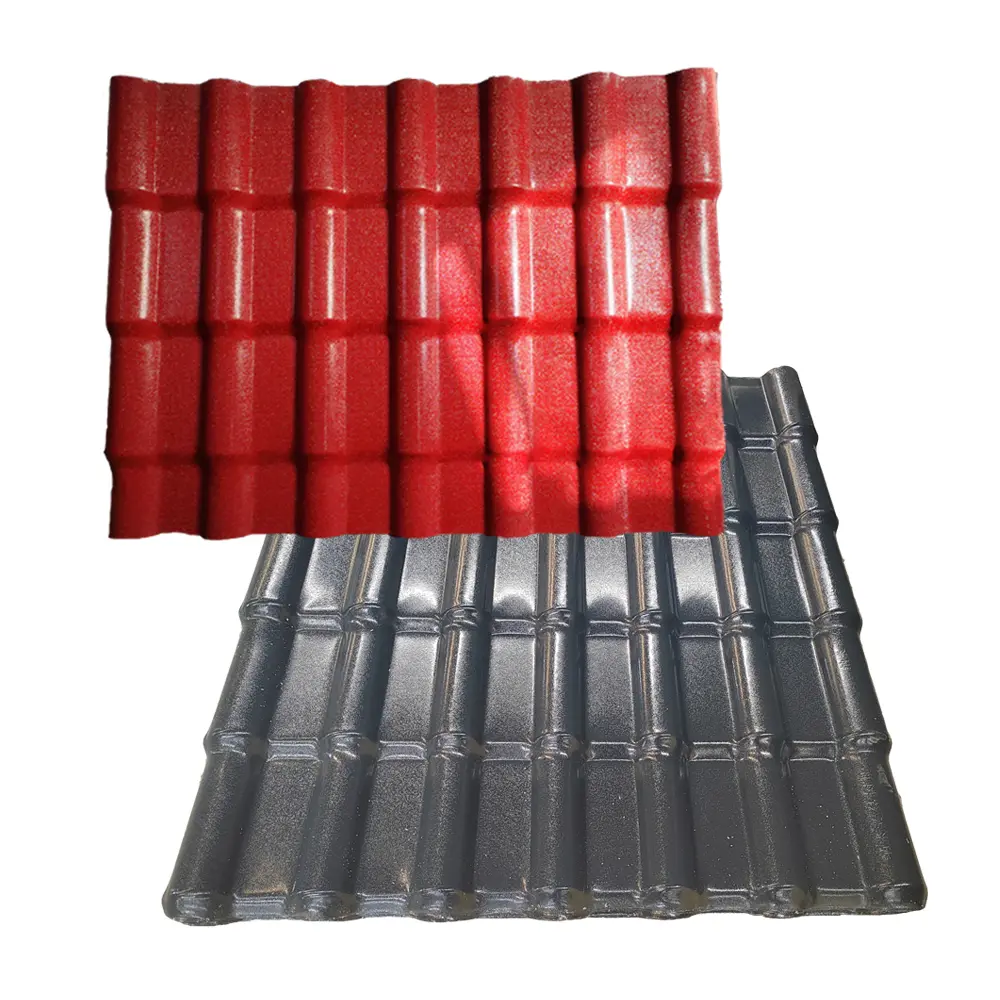

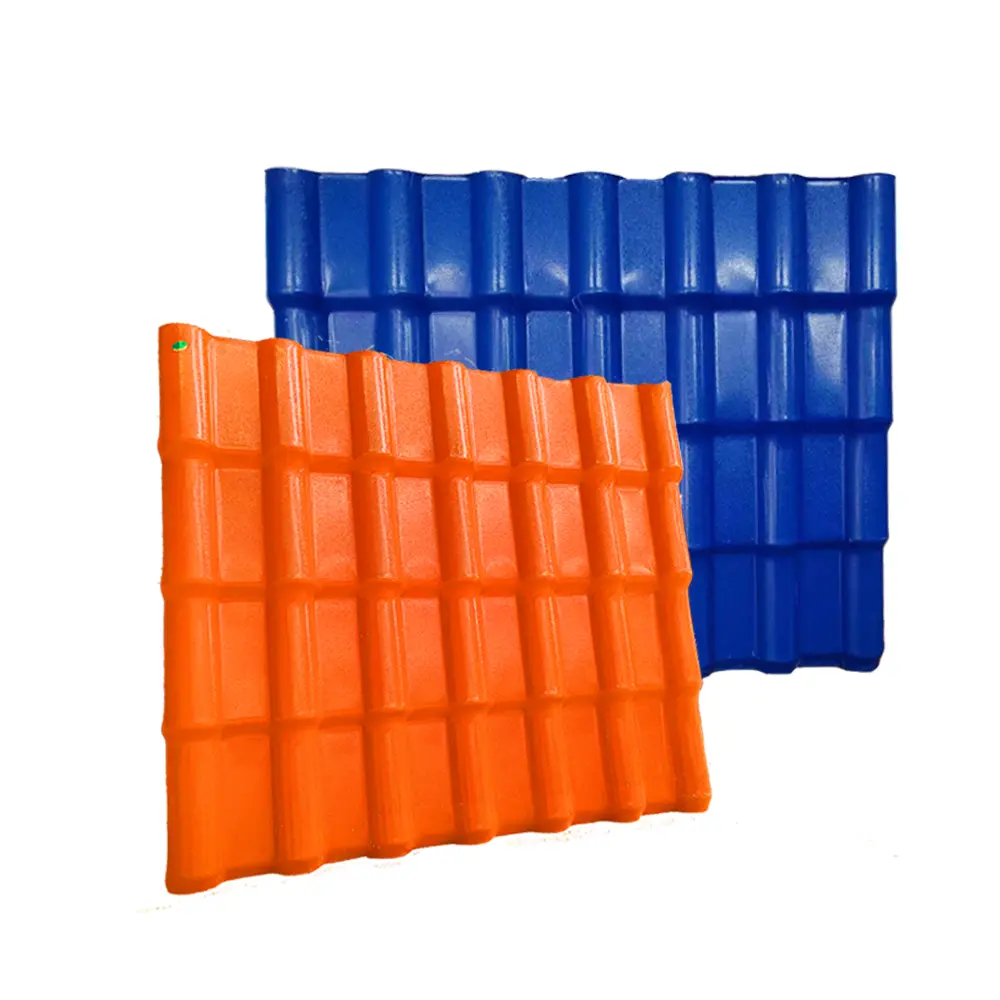

Old house renovation Synthetic resin roofing sheet ,corrugated Long span tiles roof - White Diamond series-1

Since synthetic resin tiles have been developed for almost 20 years, the product technology has become more stable and mature. It still holds a significant place in the market for building materials despite the abundance of new alternatives.

It is widely used in various buildings such like residential buildings, industrial plants, warehouses, and pergolas. It is especially suitable for the renovation of old roofs and the construction of new roofs in areas with harsh climates.

Also the installation of synthetic resin tile is relatively simple and can be installed by snapping or nailing. The installation process is fast and efficient, and can save a lot of labor costs and time.

product details

Specification

Name	Synthetic resin tile / ASA pvc Roof sheet
Material	Polyvinyl chloride + Calcium carbonate + recycled plastic，surface coated with ASA
Size	Width : 1050mm; Effective width : 960mm;Wave height 30mm;Pitch :220mm
Thickness	2.0mm/2.3mm/2.5mm/3.0mm
Length	According to customers’ request;≤5.8m
Color	Grey\Red\Blue\Orange,accept custom
Service	Total solution for project \ online technical support
Application	22°- 80°slope roofing
Life span	About 30 years
MOQ	Negotiate
Shipping port	Tianjin

Regarding the WHITE DIAMOND SERIES SYNTHETIC RESIN TILE

The white Diamond series of synthetic resin tiles are high end products in our classification according to quality. The main component is resin, which accounts for 85% of new resin material . And 10% lightweight calcium is added to make the tile have better stability and tolerance, and the service life is about 30 years

Product Description

tile (1).jpg

Synthetic resin tiles are usually made of PVC resin as the main raw material.

- Upper layer: It is a super weather-resistant ASA engineering resin with weather resistance, corrosion resistance, anti-aging and other properties. It has strong coloring rate and low fading rate.

- Middle layer: a polymeric material usually made of polyvinyl chloride resin and other materials. In order to increase the product's toughness, impact resistance, load-bearing capacity, high and low temperature tolerance and other properties, it is the core that affects the service life.

- Bottom layer : It is a heat-insulating and wear-resistant layer, the main material is polyurethane, etc. Its main function is to increase the durability and wear resistance of resin tiles, effectively prevent wear and tear during installation and use, and keep the tile surface smooth and beautiful.

The structural diagram of resin tiles may vary from different manufacturers and products, but usually includes the above three basic layers.

Classification

分类a

Characteristics

tile (3)

1. Anti-corrosion and heat insulation

The surface layer of synthetic resin tiles is coated with weather-resistant film ASA, which can resist sunlight and ultraviolet radiation well and has good anti-corrosion properties. Due to the addition of thermal insulation materials, it has good thermal insulation properties

2. Installation saves time and Labor

Synthetic resin tiles have a large single area and do not require longitudinal overlap, which greatly reduces construction time and difficulty. Save a lot of labor costs for user.

3.Synthetic resin tiles are made of environmentally friendly materials, so they will not cause any pollution to the environment.

4. High strength: Although it is light in weight, it has high strength and can withstand certain impact and pressure.

5. Good weather resistance: It can maintain good performance in various harsh weather conditions such as strong sunlight, heavy rain, snow, and wind, and is not easy to fade, crack, or warp.

6. Beautiful appearance: It has a variety of colors and shapes, and can imitate the appearance of traditional tiles, with a natural and beautiful effect, which can enhance the aesthetic value of the building.

7. Sound insulation and heat insulation: It has certain sound insulation and heat insulation properties, which can reduce the influence of outdoor noise and temperature on the indoor environment, and improve the comfort of the building.

Accessories

accessories 中英文

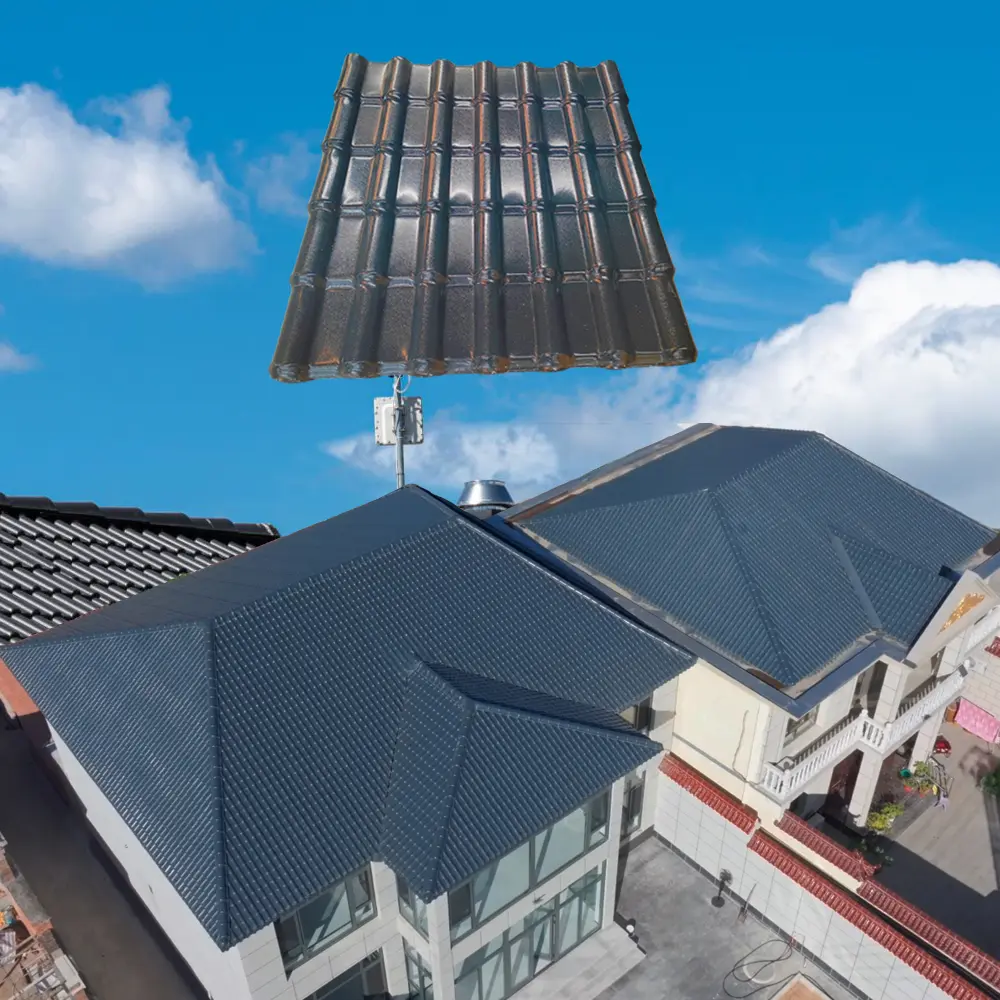

Project Case

tile (7) tile (8)

Packing and shipping

tile (9)

Why choose us

6 T shape color steel sheet (5) tile (11)
