Economical price synthetic resin tile roof color ASA film coated PVC/UPVC sheet for building roof - Blue Diamond series-1

Since synthetic resin tiles have been developed for almost 20 years, the product technology has become more stable and mature. It still holds a significant place in the market for building materials despite the abundance of new alternatives.

It is widely used in various buildings such like residential buildings, industrial plants, warehouses, and pergolas. It is especially suitable for the renovation of old roofs and the construction of new roofs in areas with harsh climates.

Also the installation of synthetic resin tile is relatively simple and can be installed by snapping or nailing. The installation process is fast and efficient, and can save a lot of labor costs and time.

product details

Specification

Name	Synthetic resin tile / ASA pvc Roof sheet
Material	Polyvinyl chloride + Calcium carbonate + recycled plastic，surface coated with ASA
Size	Width : 1050mm; Effective width : 960mm;Wave height 30mm;Pitch :220mm
Thickness	2.0mm/2.3mm/2.5mm/3.0mm
Length	According to customers’ request;≤5.8m
Color	Grey\Red\Blue\Orange,accept custom
Service	Total solution for project \ online technical support
Application	20°- 80°slope roofing
Life span	About 20 years
MOQ	Negotiate
Shipping port	Tianjin

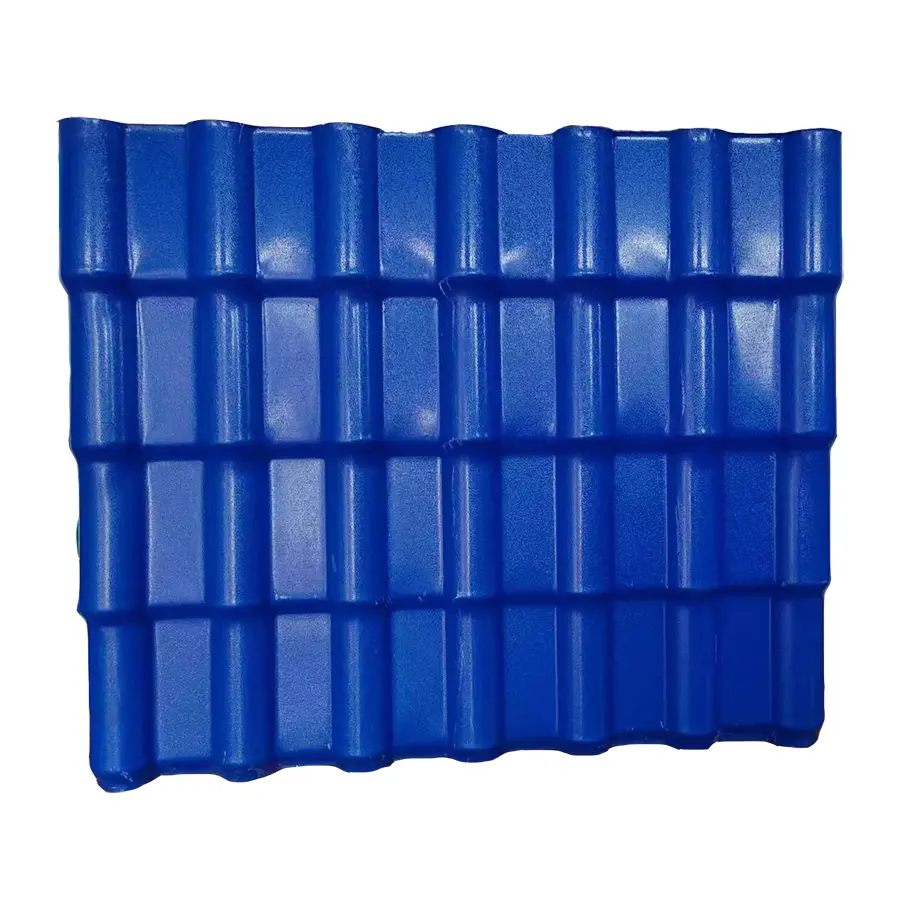

This page we will introduce the BLUE DIAMOND SERIES SYNTHETIC RESIN TILE

The BLUE Diamond series of synthetic resin tiles are belong to economical products in our classification .

In fact, the color is only used to distinguish product configuration and grade. If the customer needs to change the color, we can produce the same configuration tiles according to the customer's requirements.

This grade tile, service life about 20 years. Color fade 5% in 10 years

Product Description

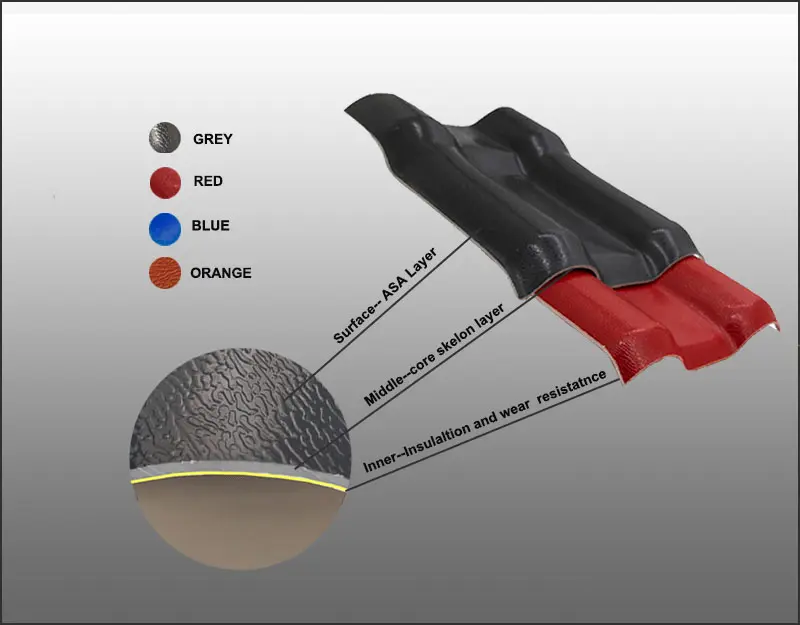

tile (1).jpg

Synthetic resin tiles are usually made of PVC resin as the main raw material.

- Upper layer: It is a super weather-resistant ASA engineering resin with weather resistance, corrosion resistance, anti-aging and other properties. It has strong coloring rate and low fading rate.

- Middle layer: a polymeric material usually made of polyvinyl chloride resin and other materials. In order to increase the product's toughness, impact resistance, load-bearing capacity, high and low temperature tolerance and other properties, it is the core that affects the service life.

- Lower layer: It is a heat-insulating and wear-resistant layer, the main material is polyurethane, etc. Its main function is to increase the durability and wear resistance of resin tiles, effectively prevent wear and tear during installation and use, and keep the tile surface smooth and beautiful.

The structural diagram of resin tiles may vary from different manufacturers and products, but usually includes the above three basic layers.

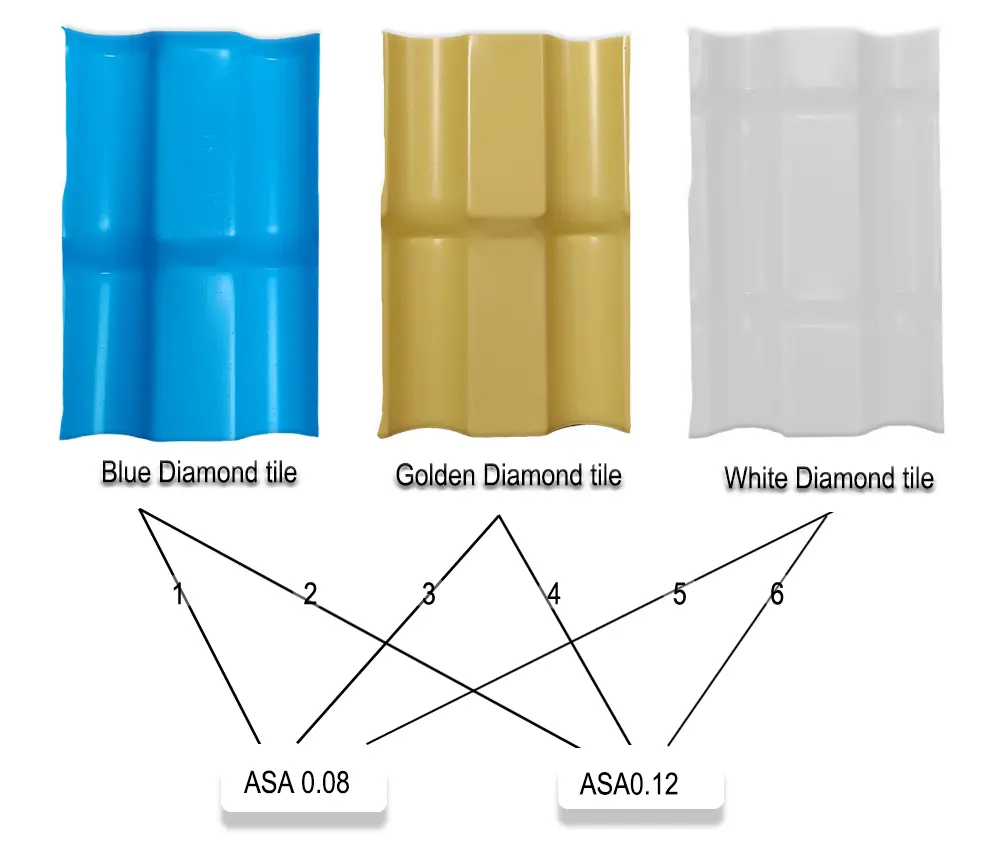

Classification

分类a

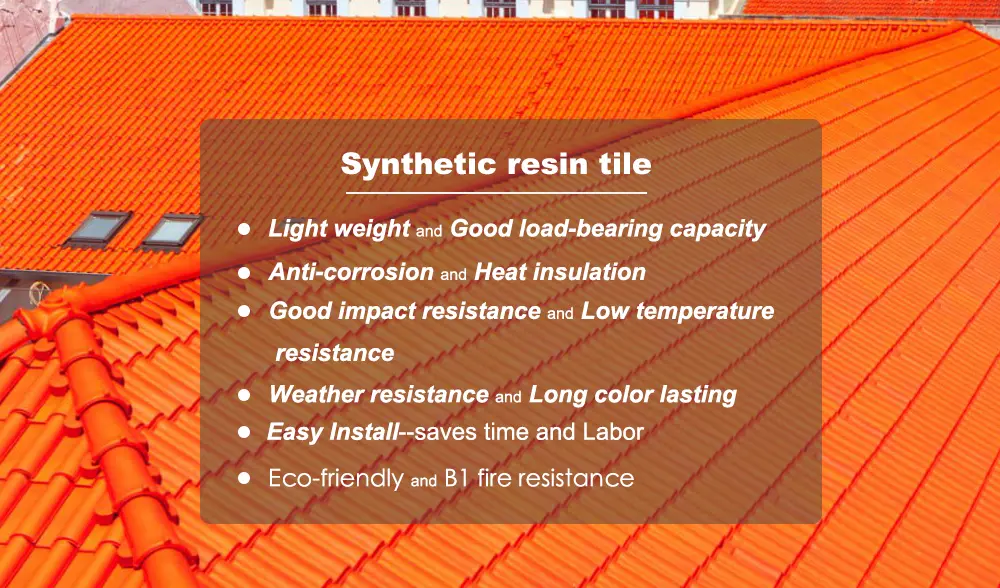

Characteristics

tile (3)

1. Light weight and Good load-bearing capacity

This kind of tile has light weight copared to the clay tile,cement tile.3mm thickness, the weight is about 5.8kg/sqm.

Also it has good load-bearing capacity and there is no need to worry about cracking or deformation during installation.

2. Anti-corrosion and heat insulation

The surface layer coated with ASA film, which can resist sunlight and ultraviolet radiation well and has good anti-corrosion properties. Due to the addition of thermal insulation materials, it has good thermal insulation properties

3.Installation saves time and Labor

This tiles have a large single area and do not require longitudinal overlap, which greatly reduces construction time and difficulty. Save a lot of labor costs for user.

4. Eco-friendly,no any pollution beween production and using, and B1 fire retardant

7. Good weather resistance: It can maintain good performance in various harsh weather conditions such as strong sunlight, heavy rain, snow, and wind, and is not easy to fade, crack, or warp.

8. Beautiful appearance: It has a variety of colors and shapes, and can imitate the appearance of traditional tiles, with a natural and beautiful effect, which can enhance the aesthetic value of the building.

9. Sound insulation and heat insulation: It has certain sound insulation and heat insulation properties, which can reduce the influence of outdoor noise and temperature on the indoor environment, and improve the comfort of the building.

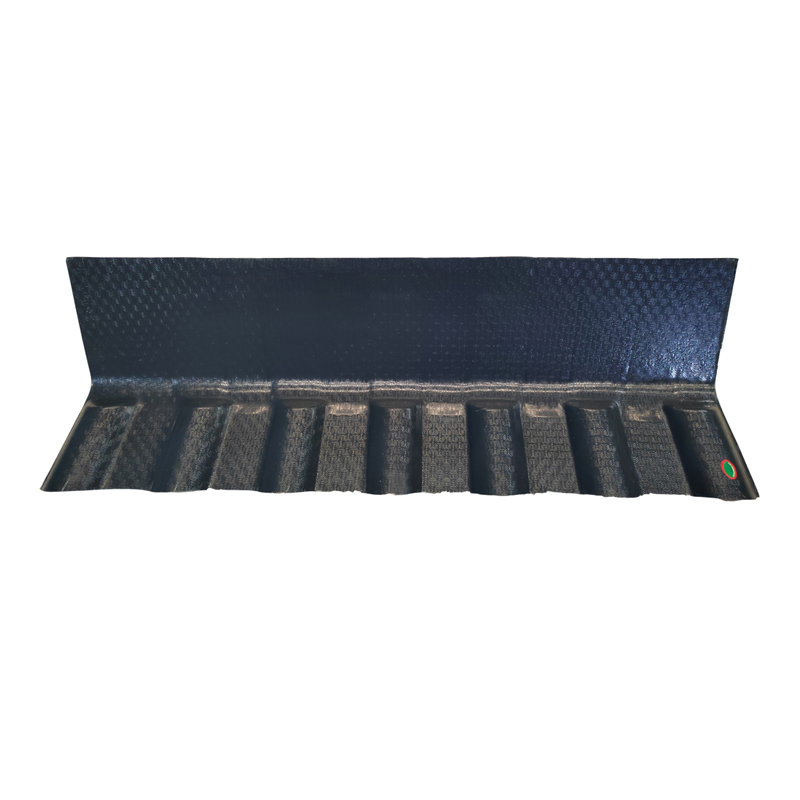

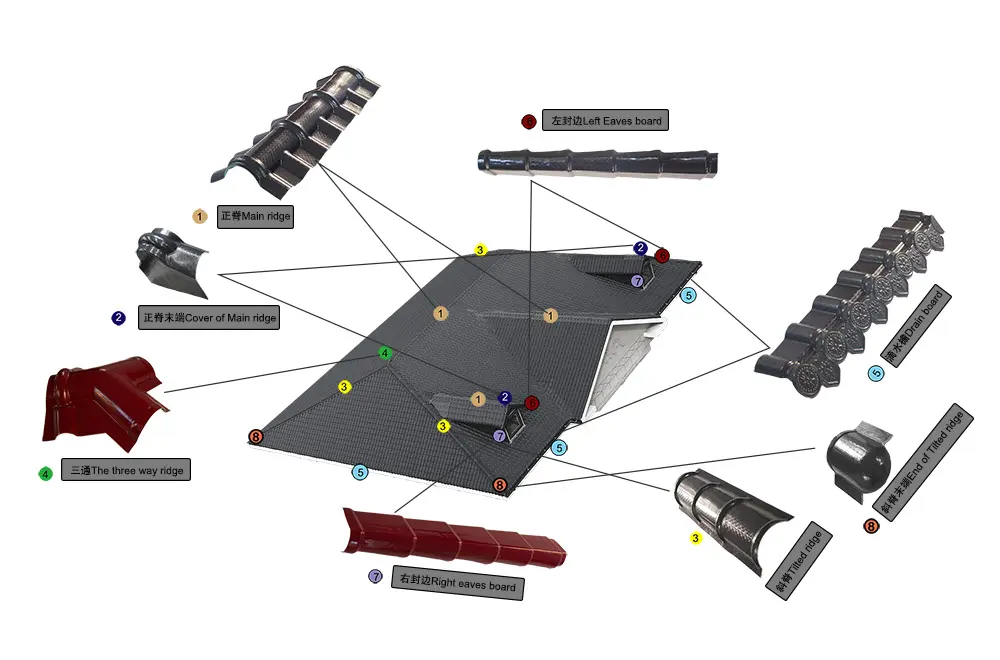

Accessories

accessories 中英文

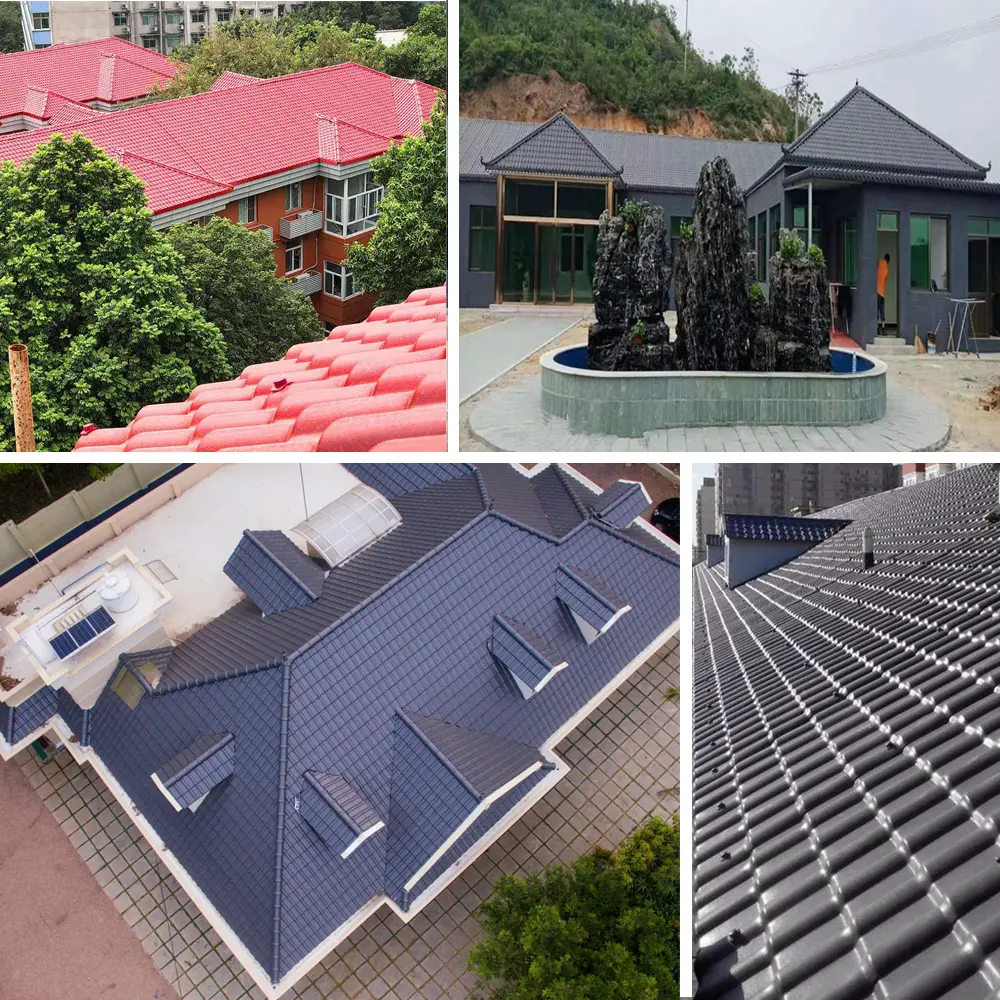

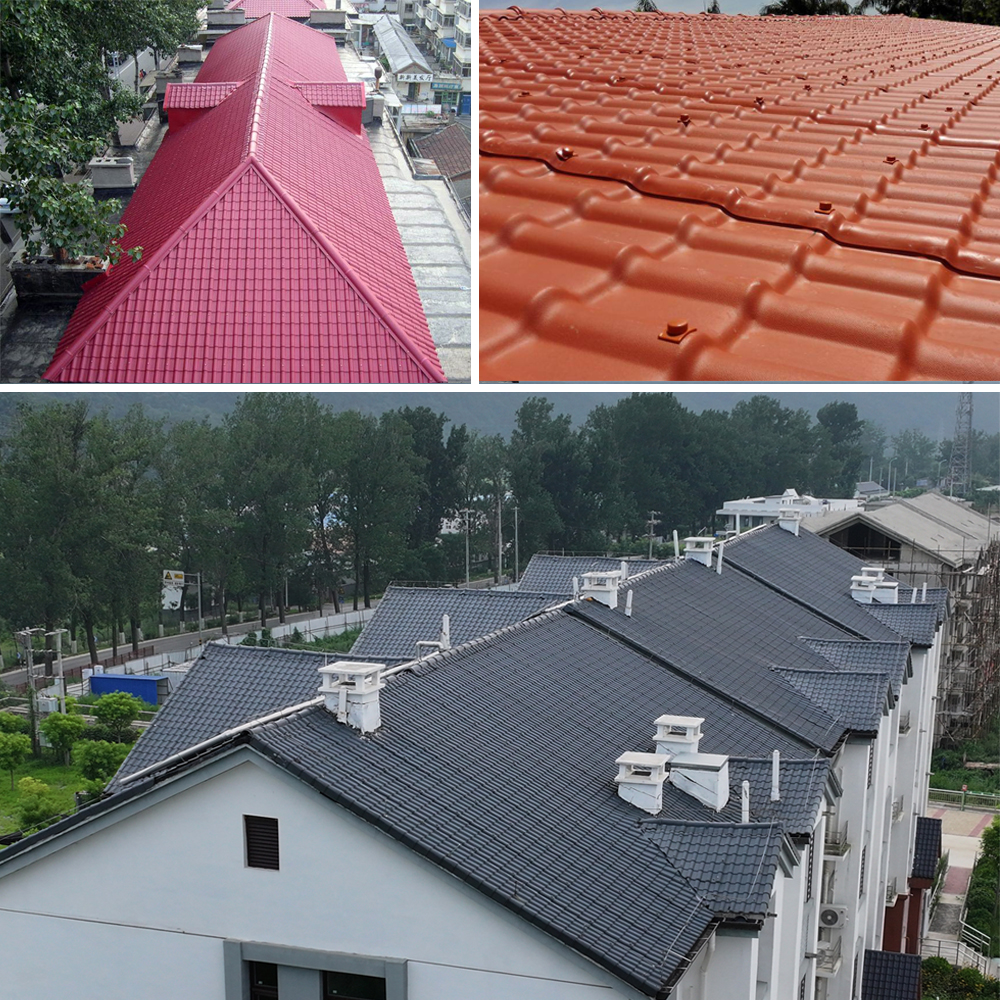

Project Case

tile (7) tile (8)

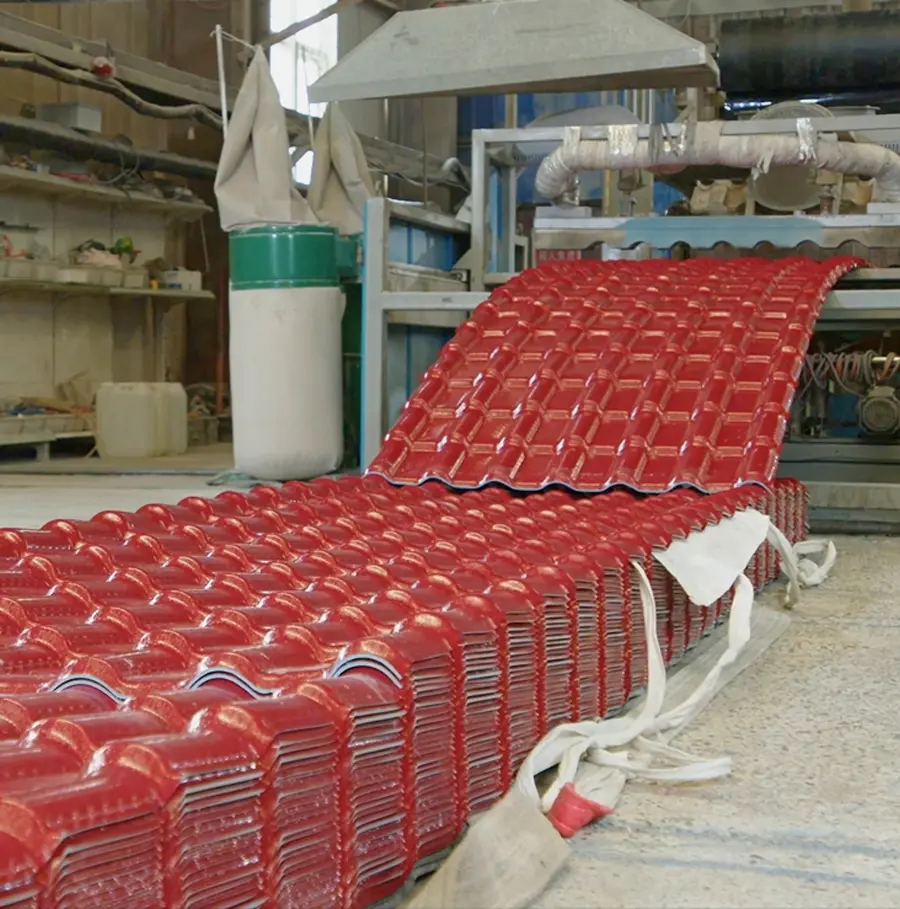

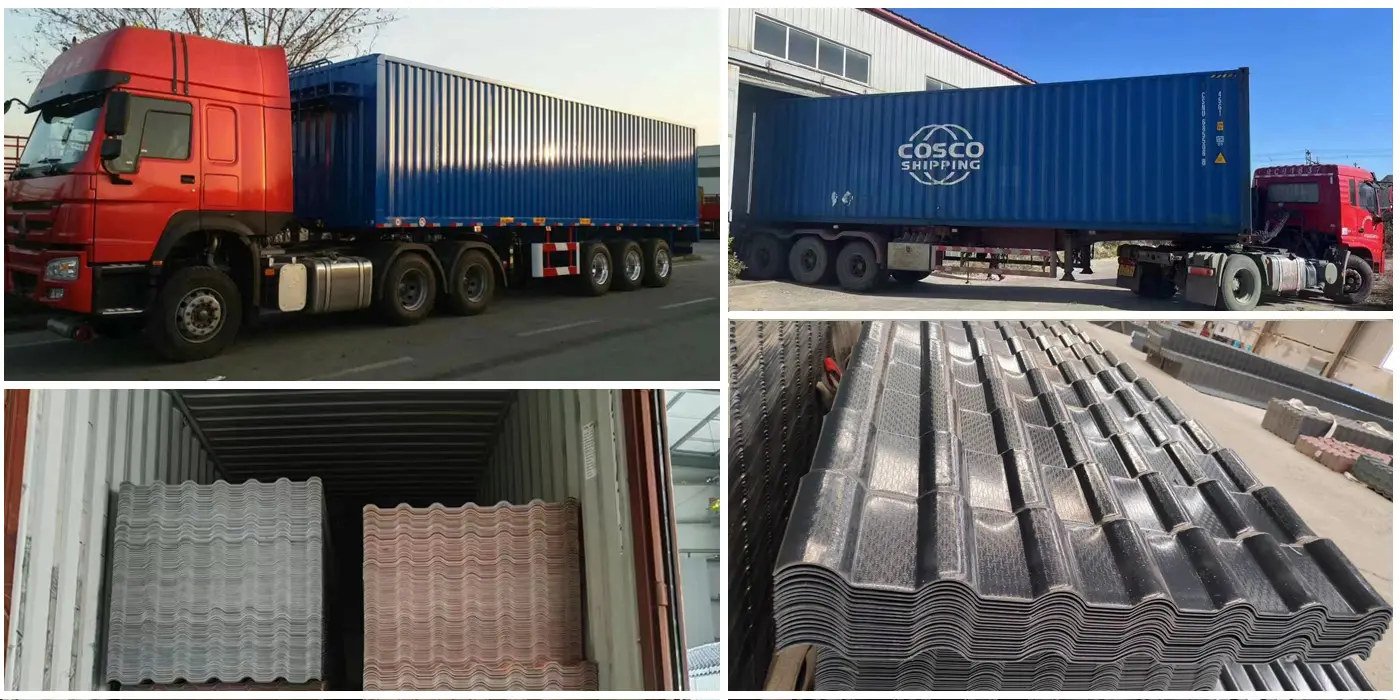

Packing and shipping

tile (9)

Why choose us

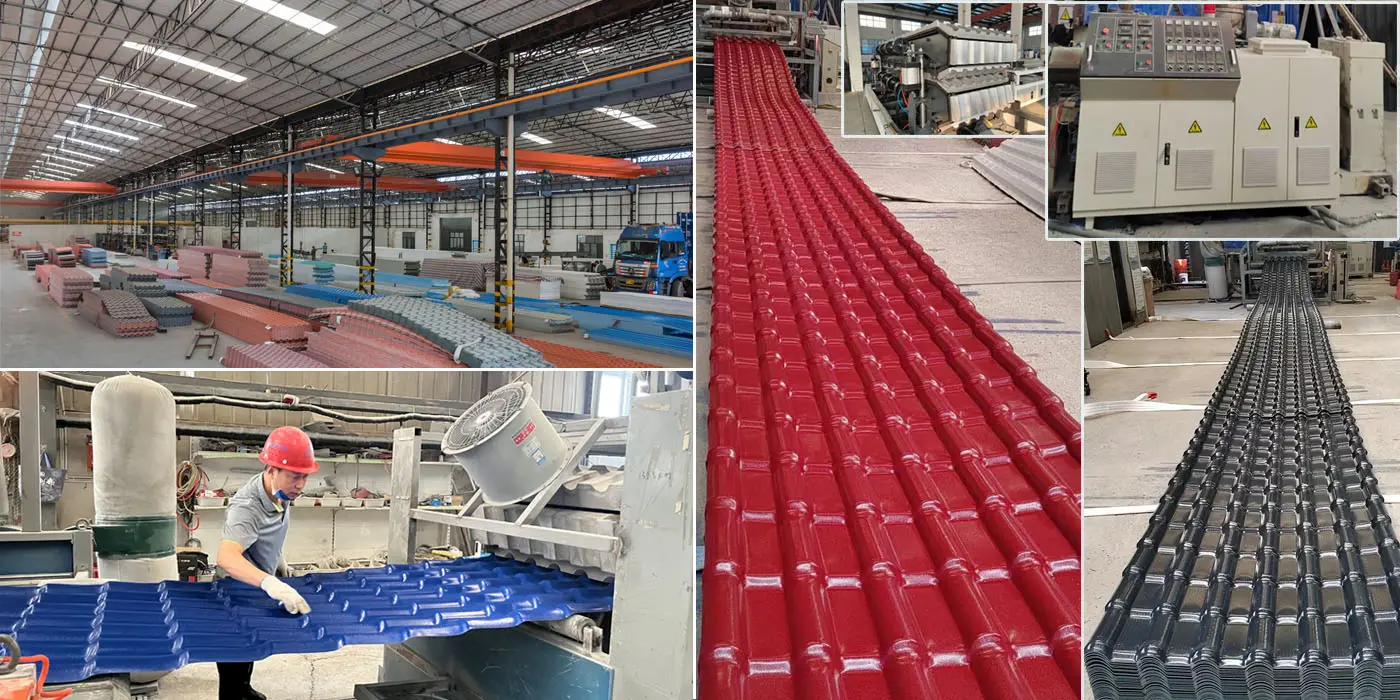

About us tile (11)
