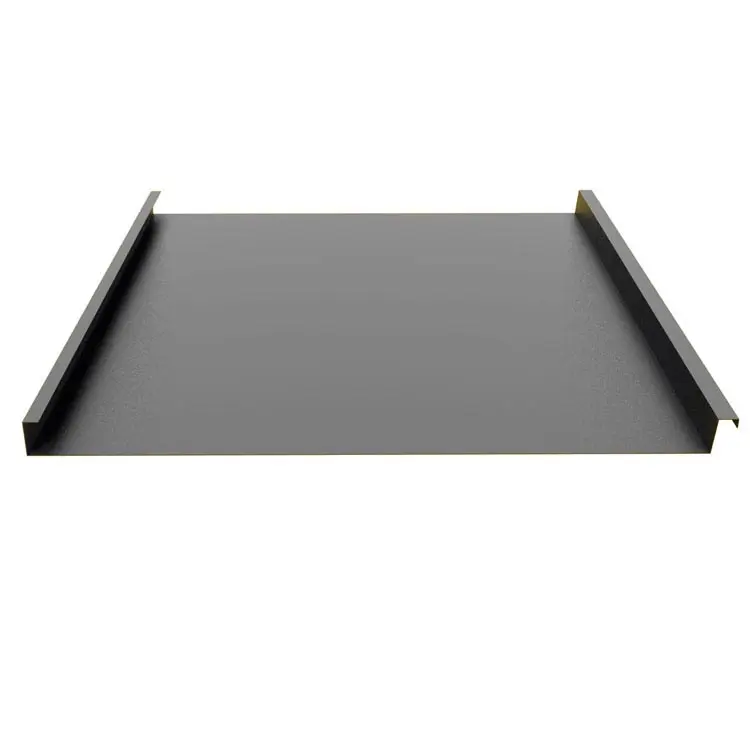

Low Edge Series
roof sheet with 25mm rib height ,Aluminum alloy metal sheet PVDF paint,suitable for special geometric roofs
Specification
|
Name |
Low standing edge aluminum alloy roof sheet |
|
Material |
3003 /3004 Aluminum alloy |
|
Application |
Artistic roof, Long span roofing,Warehouse |
|
Service life |
50+ years |
|
Dimention |

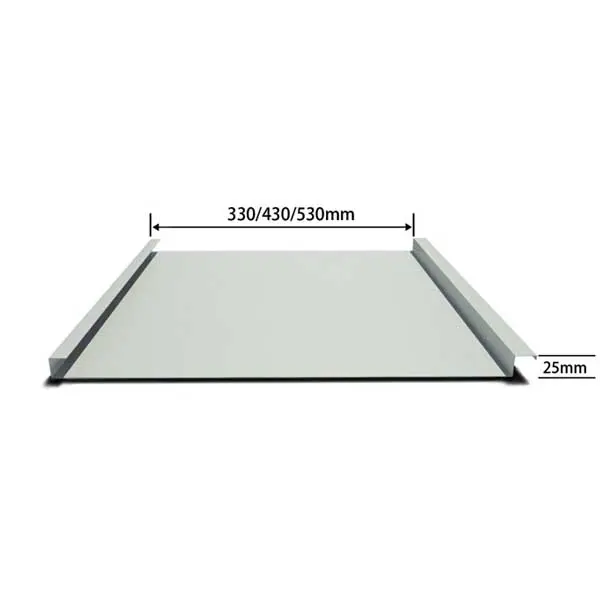

Width-400mm/430mm,Height-25mm;Length: ≤11m |
|
Thickness |
0.7mm-1.2mm |
|
Weight |
2.37g/cm³ |
|
Color |
Usual color-Grey, Accept custom |
|
Surface |
Fluorocarbon paint |
|
Sevice life |
50 years |
|
Advantage |
Super Corrosion resistance;long lasting color;Easy install,Etc |
Product Description
Performance advantages:
- Good durability: The aluminum-magnesium-manganese alloy material itself has good corrosion resistance. By reacting with the air to form an oxide layer, it can effectively protect the material, maintain stable performance under various climatic conditions, and have a long service life.
- Lightweight: The weight of the aluminum-magnesium-manganese roof panel is relatively light, about one-third of the weight of the color steel plate, which makes it more convenient during construction and transportation, and also reduces the overall load of the building.
- Moderate strength: The magnesium, manganese and other elements in the raw materials give it a certain strength, which can meet the bearing requirements of the roof.

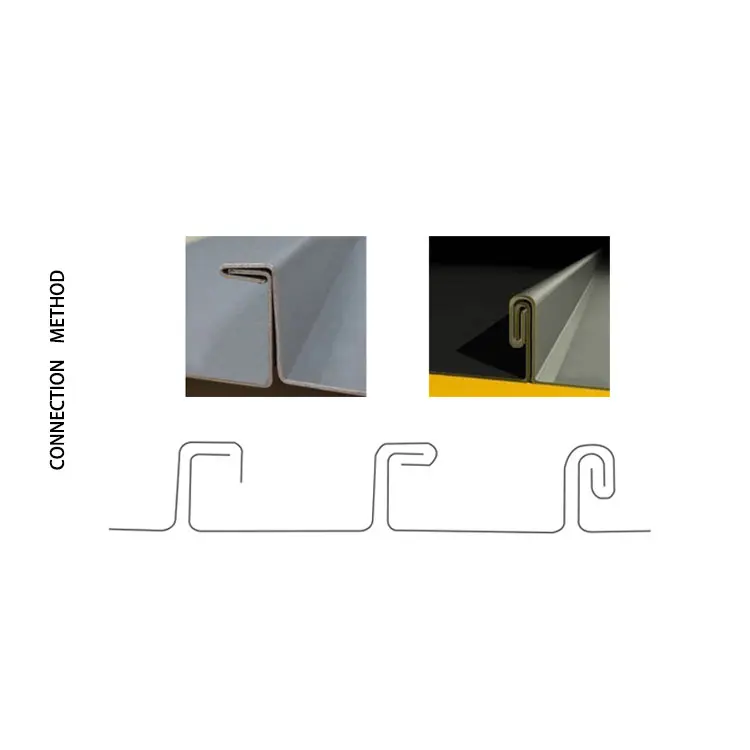

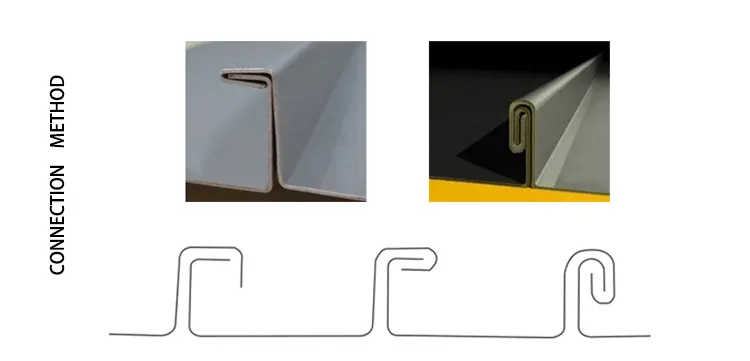

- Good waterproof performance: The low standing edge roof panel is a double-edged fully supported roof system, which does not require the assistance of other waterproof filling materials. The roof panel ribs are folded and sealed with electric locks. The folded roof is completely waterproof and waterproof.
- Diverse surface treatment: A variety of industrial treatments can be performed to make the appearance of the roof panel more beautiful and meet the design requirements of different buildings.
- Good processing performance: easy to perform bending, roll bending and other processing operations, and can adapt to various complex roof shapes and design requirements.
Application:
This kind of sheet widely used in villas, homestays, commercial blocks, hotels, clubs and other buildings, as well as some small buildings with high requirements for building appearance and low requirements for roof load.
However, the load capacity and wind resistance of low-rise roof panels are relatively weak. In some large buildings or windy areas with high requirements for roof structure strength and wind resistance, they may need to be used with caution. In actual applications, the appropriate type of roof panel should be selected based on the specific building needs and use environment.

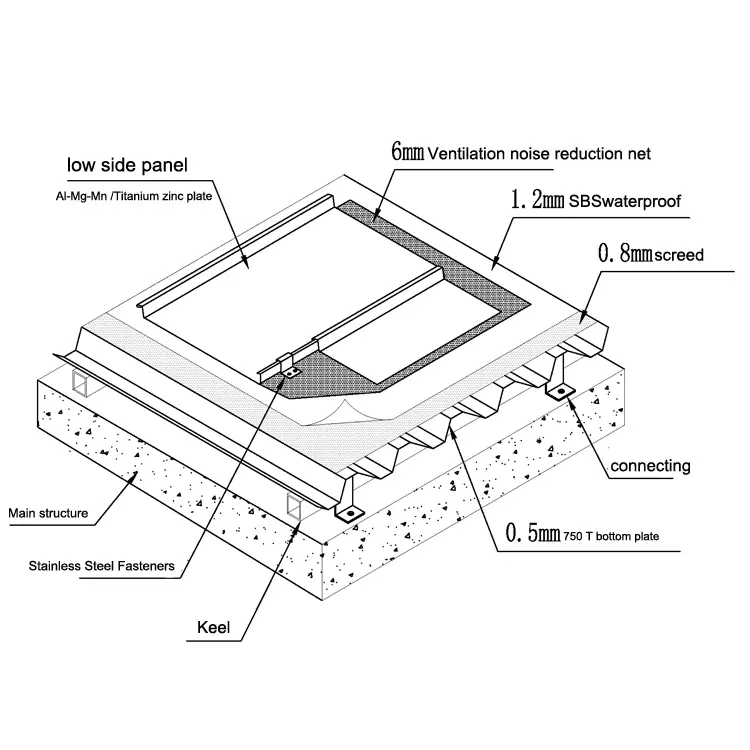

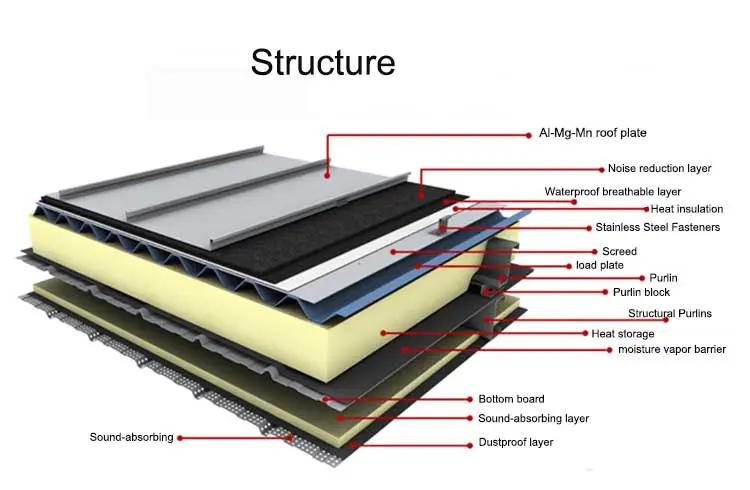

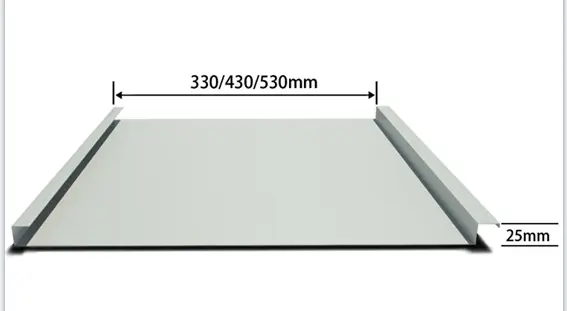

USUAL STRUCTURE

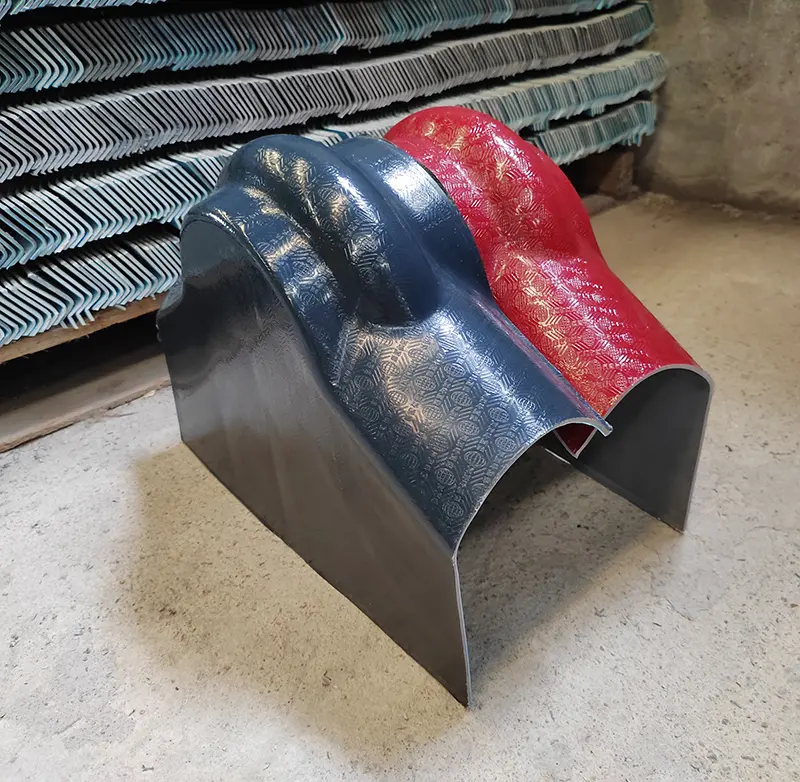

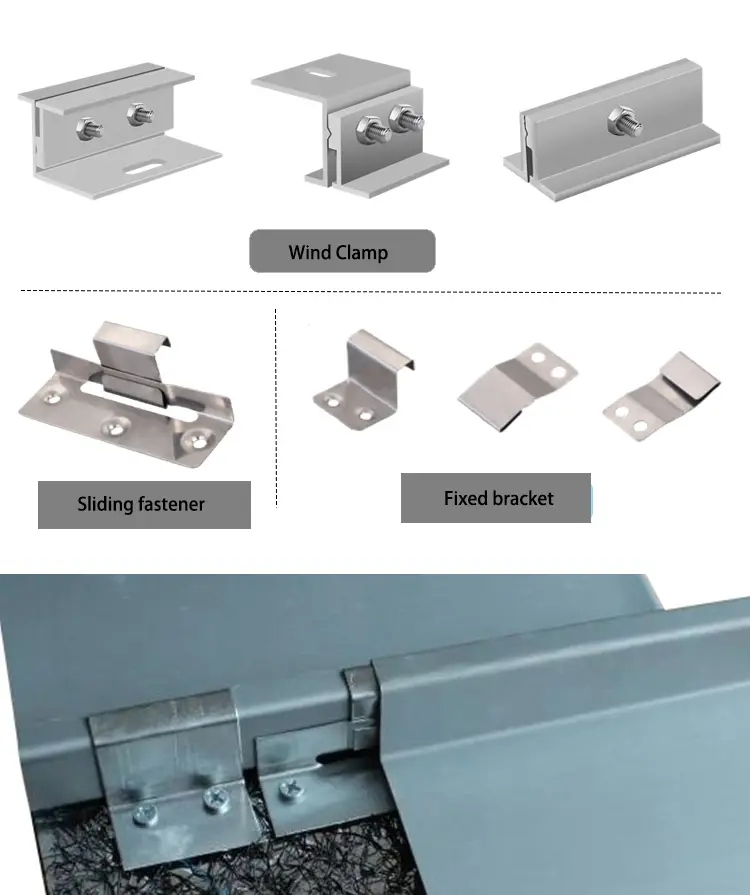

FIXED KITS

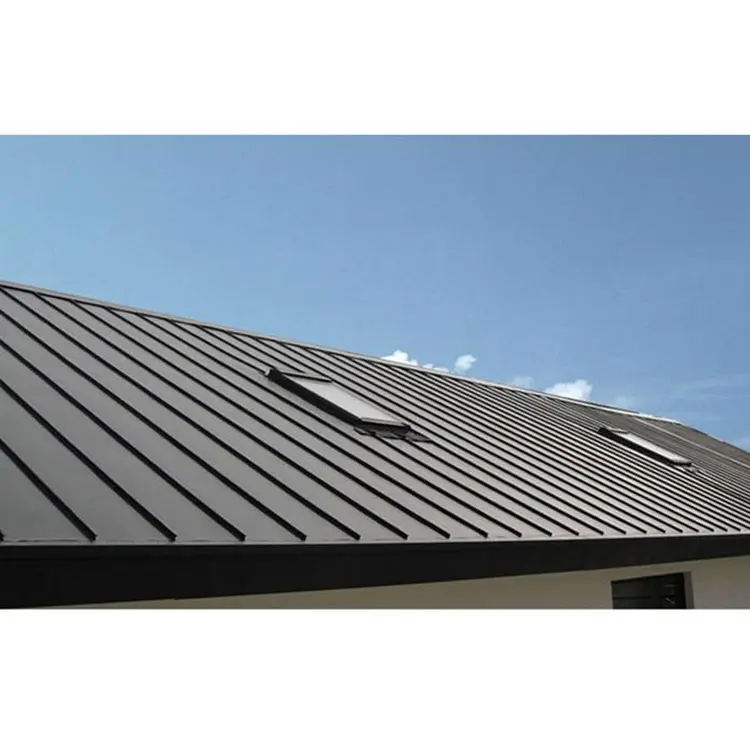

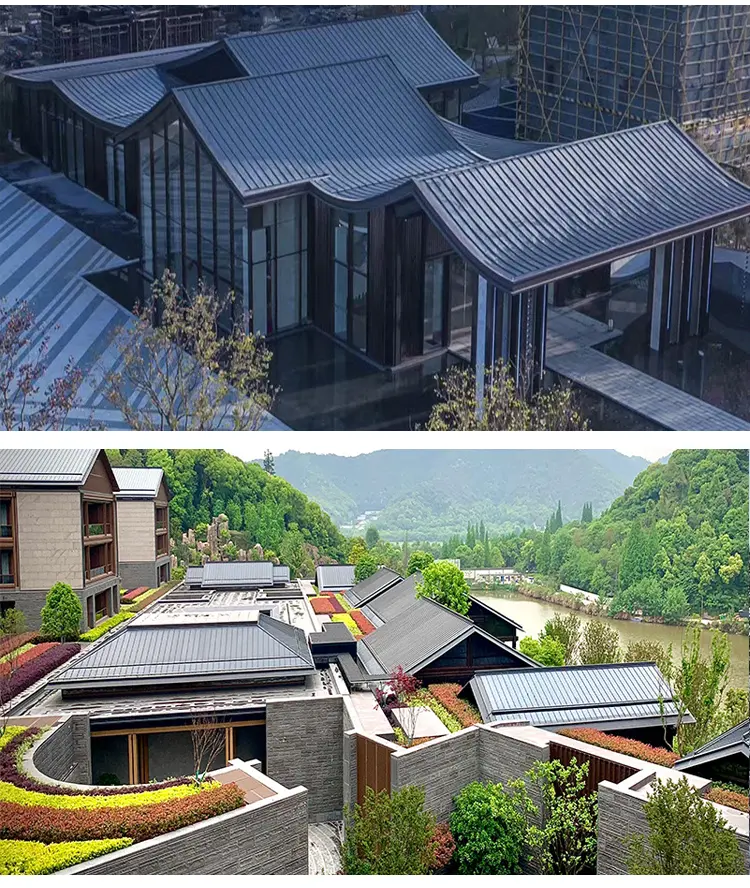

PROJECT CASE
